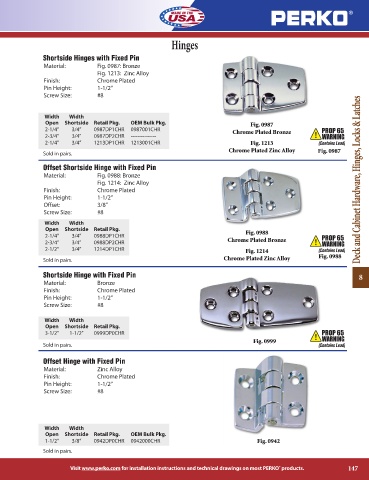

Page 147 - Perko

Hinges

Shortside Hinges with Fixed Pin
Material: Fig. 0987: Bronze
Fig. 1213: Zinc Alloy
Finish: Chrome Plated
Pin Height: 1-1/2”
Screw Size: #8

Width Width
Open Shortside Retail Pkg. OEM Bulk Pkg. Fig. 0987
2-1/4” 3/4” 0987DP1CHR 0987001CHR Chrome Plated Bronze
2-3/4” 3/4” 0987DP2CHR ---------------
2-1/4” 3/4” 1213DP1CHR 1213001CHR Fig. 1213
Chrome Plated Zinc Alloy Fig. 0987
Sold in pairs.

Offset Shortside Hinge with Fixed Pin
Material: Fig. 0988: Bronze
Fig. 1214: Zinc Alloy Deck and Cabinet Hardware, Hinges, Locks & Latches
Finish: Chrome Plated
Pin Height: 1-1/2”
Offset: 3/8”
Screw Size: #8
Width Width
Open Shortside Retail Pkg. Fig. 0988
2-1/4” 3/4” 0988DP1CHR
2-3/4” 3/4” 0988DP2CHR Chrome Plated Bronze
2-1/2” 3/4” 1214DP1CHR Fig. 1214

Sold in pairs. Chrome Plated Zinc Alloy Fig. 0988

Shortside Hinge with Fixed Pin 8
Material: Bronze
Finish: Chrome Plated
Pin Height: 1-1/2”
Screw Size: #8

Width Width
Open Shortside Retail Pkg.
3-1/2” 1-1/2” 0999DP0CHR
Fig. 0999
Sold in pairs.

Offset Hinge with Fixed Pin
Material: Zinc Alloy
Finish: Chrome Plated
Pin Height: 1-1/2”
Screw Size: #8

Width Width
Open Shortside Retail Pkg. OEM Bulk Pkg.
1-1/2” 3/8” 0942DP0CHR 0942000CHR Fig. 0942
Sold in pairs.

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 147
