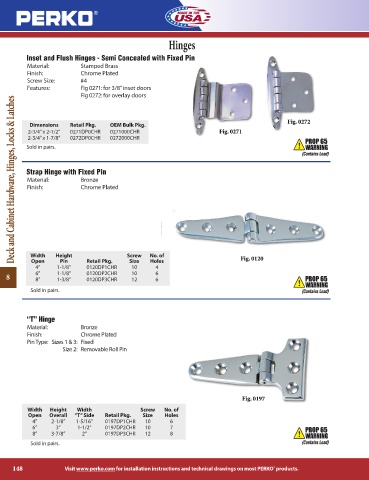

Page 148 - Perko

Hinges

Inset and Flush Hinges - Semi Concealed with Fixed Pin
Material: Stamped Brass
Finish: Chrome Plated
Screw Size: #4
Features: Fig 0271: for 3/8” inset doors
Fig 0272: for overlay doors
Deck and Cabinet Hardware, Hinges, Locks & Latches

Fig. 0272
Dimensions Retail Pkg. OEM Bulk Pkg.

2-3/4” x 2-1/2” 0271DP0CHR 0271000CHR Fig. 0271
2-3/4” x 1-7/8” 0272DP0CHR 0272000CHR
Sold in pairs.

Strap Hinge with Fixed Pin
Material: Bronze
Finish: Chrome Plated

Width Height Screw No. of
Open Pin Retail Pkg. Size Holes Fig. 0120
4” 1-1/8” 0120DP1CHR 10 4
6” 1-1/8” 0120DP2CHR 10 6
8 8” 1-3/8” 0120DP3CHR 12 6

Sold in pairs.

“T” Hinge
Material: Bronze
Finish: Chrome Plated
Pin Type: Sizes 1 & 3: Fixed
Size 2: Removable Roll Pin

Fig. 0197
Width Height Width Screw No. of
Open Overall “T” Side Retail Pkg. Size Holes
4” 2-1/8” 1-5/16” 0197DP1CHR 10 6
6” 3” 1-1/2” 0197DP2CHR 10 7
8” 3-7/8” 2” 0197DP3CHR 12 8
Sold in pairs.

148 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
