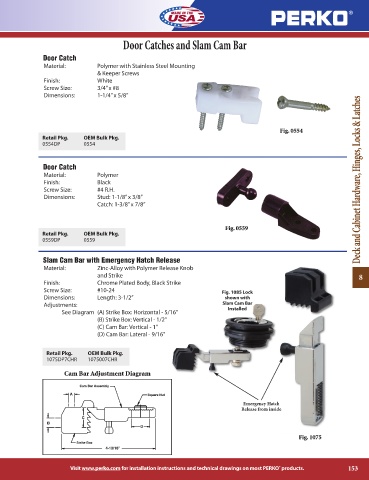

Door Catches and Slam Cam Bar

Door Catch
Material: Polymer with Stainless Steel Mounting
& Keeper Screws
Finish: White
Screw Size: 3/4” x #8
Dimensions: 1-1/4” x 5/8”

Fig. 0554
Retail Pkg. OEM Bulk Pkg.
0554DP 0554

Door Catch
Material: Polymer
Finish: Black Deck and Cabinet Hardware, Hinges, Locks & Latches
Screw Size: #4 R.H.
Dimensions: Stud: 1-1/8” x 3/8”
Catch: 1-3/8” x 7/8”

Fig. 0559
Retail Pkg. OEM Bulk Pkg.
0559DP 0559

Slam Cam Bar with Emergency Hatch Release
Material: Zinc-Alloy with Polymer Release Knob
and Strike 8
Finish: Chrome Plated Body, Black Strike
Screw Size: #10-24 Fig. 1085 Lock
Dimensions: Length: 3-1/2” shown with
Adjustments: Slam Cam Bar
Installed
See Diagram (A) Strike Box: Horizontal - 5/16”
(B) Strike Box: Vertical - 1/2”
(C) Cam Bar: Vertical - 1”
(D) Cam Bar: Lateral - 9/16”

Retail Pkg. OEM Bulk Pkg.
1075DP7CHR 1075007CHR

Cam Bar Adjustment Diagram

Emergency Hatch
Release from inside

Fig. 1075
