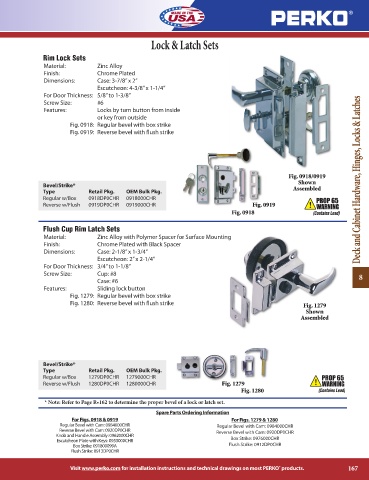

Page 167 - Perko

Lock & Latch Sets

Rim Lock Sets
Material: Zinc Alloy
Finish: Chrome Plated
Dimensions: Case: 3-7/8” x 2”
Escutcheon: 4-3/8” x 1-1/4”
For Door Thickness: 5/8” to 1-3/8”
Screw Size: #6
Features: Locks by turn button from inside
or key from outside
Fig. 0918: Regular bevel with box strike
Fig. 0919: Reverse bevel with flush strike

Fig. 0918/0919
Shown Deck and Cabinet Hardware, Hinges, Locks & Latches
Bevel/Strike* Assembled
Type Retail Pkg. OEM Bulk Pkg.
Regular w/Box 0918DP0CHR 0918000CHR
Reverse w/Flush 0919DP0CHR 0919000CHR Fig. 0919
Fig. 0918

Flush Cup Rim Latch Sets
Material: Zinc Alloy with Polymer Spacer for Surface Mounting
Finish: Chrome Plated with Black Spacer
Dimensions: Case: 2-1/8” x 1-3/4”
Escutcheon: 2” x 2-1/4”
For Door Thickness: 3/4” to 1-1/8”
Screw Size: Cup: #8 8
Case: #6
Features: Sliding lock button
Fig. 1279: Regular bevel with box strike
Fig. 1280: Reverse bevel with flush strike Fig. 1279
Shown
Assembled

Bevel/Strike*
Type Retail Pkg. OEM Bulk Pkg.
Regular w/Box 1279DP0CHR 1279000CHR
Reverse w/Flush 1280DP0CHR 1280000CHR Fig. 1279
Fig. 1280

* Note: Refer to Page R•162 to determine the proper bevel of a lock or latch set.
Spare Parts Ordering Information
For Figs. 0918 & 0919 For Figs. 1279 & 1280
Regular Bevel with Cam: 0984000CHR Regular Bevel with Cam: 0984000CHR
Reverse Bevel with Cam: 0920DP0CHR Reverse Bevel with Cam: 0920DP0CHR
Knob and Handle Assembly: 0962000CHR
Escutcheon Plate with Keys: 0953000CHR Box Strike: 0976000CHR
Box Strike: 091800099A Flush Strike: 0912DP0CHR
Flush Strike: 0913DP0CHR

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 167
®
