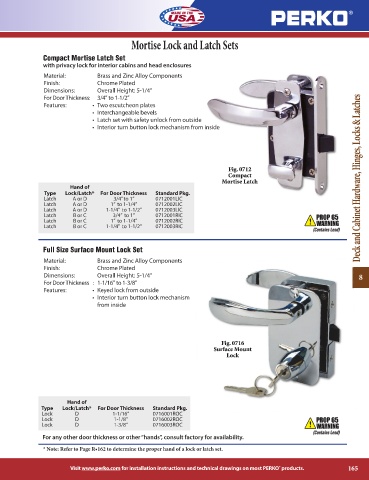

Mortise Lock and Latch Sets

Compact Mortise Latch Set
with privacy lock for interior cabins and head enclosures
Material: Brass and Zinc Alloy Components
Finish: Chrome Plated
Dimensions: Overall Height: 5-1/4”
For Door Thickness: 3/4” to 1-1/2”
Features: • Two escutcheon plates
• Interchangeable bevels
• Latch set with safety unlock from outside
• Interior turn button lock mechanism from inside

Fig. 0712
Compact
Mortise Latch Deck and Cabinet Hardware, Hinges, Locks & Latches
Hand of
Type Lock/Latch* For Door Thickness Standard Pkg.
Latch A or D 3/4” to 1” 0712001LIC
Latch A or D 1” to 1-1/4” 0712002LIC
Latch A or D 1-1/4” to 1-1/2” 0712003LIC
Latch B or C 3/4” to 1” 0712001RIC
Latch B or C 1” to 1-1/4” 0712002RIC
Latch B or C 1-1/4” to 1-1/2” 0712003RIC

Full Size Surface Mount Lock Set

Material: Brass and Zinc Alloy Components
Finish: Chrome Plated
Dimensions: Overall Height: 5-1/4” 8
For Door Thickness : 1-1/16” to 1-3/8”
Features: • Keyed lock from outside
• Interior turn button lock mechanism
from inside

Fig. 0716
Surface Mount
Lock

Hand of
Type Lock/Latch* For Door Thickness Standard Pkg.
Lock D 1-1/16” 0716001ROC
Lock D 1-1/8” 0716002ROC
Lock D 1-3/8” 0716003ROC

For any other door thickness or other “hands”, consult factory for availability.
* Note: Refer to Page R•162 to determine the proper hand of a lock or latch set.

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 165
