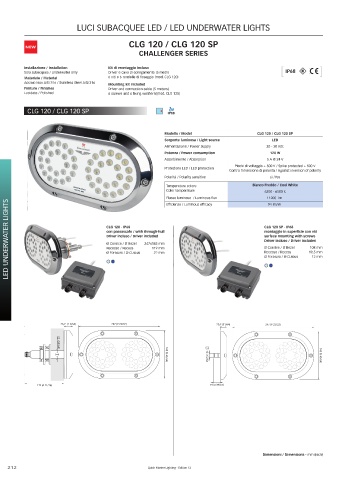

Page 212 - Quick

LUCI SUBACQUEE LED / LED UNDERWATER LIGHTS

CLG 120 / CLG 120 SP
NEW
CHALLENGER SERIES

Installazione / Installation Kit di montaggio incluso
Solo subacquea / Underwater only Driver e cavo di collegamento (5 metri) [ IP68 ]
Materiale / Material 6 viti e 6 rondelle di fissaggio (mod. CLG 120)
Acciaio inox AISI 316 / Stainless Steel AISI 316
Mounting kit included
Finiture / Finishes Driver and connection cable (5 meters)
Lucidato / Polished 6 screws and 6 fixing washers((mod. CLG 120)

CLG 120 / CLG 120 SP

Modello / Model CLG 120 / CLG 120 SP
Sorgente luminosa / Light source LED
Alimentazione / Power supply 20 - 30 Vdc
Potenza / Power consumption 120 W
Assorbimento / Absorption 5 A @ 24 V
Picchi di voltaggio ± 500 V / Spike protected ± 500 V
Protezione LED / LED protection
Contro l’inversione di polarità / Against inversion of polarity
Polarità / Polarity sensitive sì /Yes
Temperatura colore Bianco Freddo / Cool White
Color temperature 6200 - 6500 K
Flusso luminoso / Luminous flux 11200 lm
LED UNDERWATER LIGHTS CLG 120 - IP68 247x145 mm CLG 120 SP - IP68 19,5 mm
94 lm/W
Efficienza / Luminous efficacy

con passascafo / with through-hull
montaggio in superficie con viti
Driver incluso / Driver included
surface mounting with screws
Driver incluso / Driver included
Ø Cornice / Ø Bezel
Ø Cornice / Ø Bezel
108 mm
Recesso / Recess
119 mm
Recesso / Recess
Ø Foratura / Ø Cutout
22 mm
Ø Foratura / Ø Cutout
12 mm

102 (9 23/32)

26,7 (1 3/64) 247 (9 23/32) 20,2 (51/64) 247 (9 23/32)

22 (55/64)

119 (4 11/16) 145 (5 45/64) 12 (15/32) 19,5 (49/64) 145 (5 45/64)
102 (9 23/32)

Dimensioni / Dimensions - mm (inch)

212 Quick Marine Lighting - Edition 12
