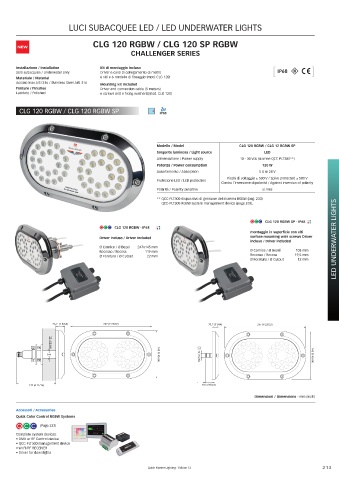

LUCI SUBACQUEE LED / LED UNDERWATER LIGHTS

CLG 120 RGBW / CLG 120 SP RGBW
NEW
CHALLENGER SERIES

Installazione / Installation Kit di montaggio incluso
Solo subacquea / Underwater only Driver e cavo di collegamento (5 metri) [ IP68 ]
Materiale / Material 6 viti e 6 rondelle di fissaggio (mod. CLG 120)
Acciaio inox AISI 316 / Stainless Steel AISI 316
Mounting kit included
Finiture / Finishes Driver and connection cable (5 meters)
Lucidato / Polished 6 screws and 6 fixing washers((mod. CLG 120)

CLG 120 RGBW / CLG 120 RGBW SP

Modello / Model CLG 120 RGBW / CLG 12 RGBW SP
Sorgente luminosa / Light source LED
Alimentazione / Power supply 10 - 30 Vdc (tramite QCC PLT300**)
Potenza / Power consumption 120 W
Assorbimento / Absorption 5 A @ 24 V
Picchi di voltaggio ± 500 V / Spike protected ± 500 V
Protezione LED / LED protection
Contro l’inversione di polarità / Against inversion of polarity
Polarità / Polarity sensitive sì /Yes
** QCC-PLT300 dispositivo di gestione del sistema RGBW (pag. 233)
QCC-PLT300 RGBW system management device (page 233).

CLG 120 RGBW SP - IP68
CLG 120 RGBW - IP68
montaggio in superficie con viti
Driver incluso / Driver included surface mounting with screws Driver
incluso / Driver included LED UNDERWATER LIGHTS
Ø Cornice / Ø Bezel 247x145 mm
Recesso / Recess 119 mm Ø Cornice / Ø Bezel 108 mm
Ø Foratura / Ø Cutout 22 mm Recesso / Recess 19,5 mm
Ø Foratura / Ø Cutout 12 mm

102 (9 23/32)

26,7 (1 3/64) 247 (9 23/32) 20,2 (51/64) 247 (9 23/32)

22 (55/64)

119 (4 11/16) 145 (5 45/64) 12 (15/32) 19,5 (49/64) 145 (5 45/64)
102 (9 23/32)
Dimensioni / Dimensions - mm (inch)
Accessori / Accessories
Quick Color Control RGBW Systems
(Page 233)
Complete system devices:
• DMX or RF Control device
• QCC-PLT300 management device
• WI FI/RF RECEIVER
• Driver for downlights

Quick Marine Lighting - Edition 12 213
