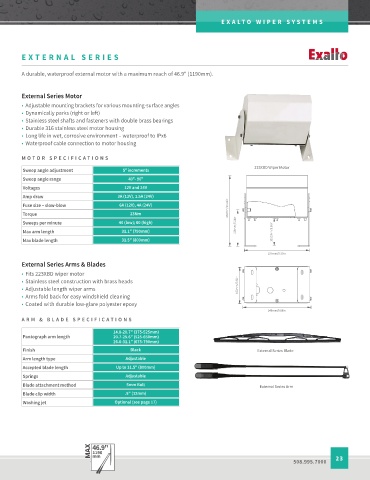

EX AL T O WIPER S Y S TEMS

EX TERNAL SERIES

A durable, waterproof external motor with a maximum reach of 46.9" (1190mm).

External Series Motor
• Adjustable mounting brackets for various mounting-surface angles
• Dynamically parks (right or left)
• Stainless steel shafts and fasteners with double brass bearings
• Durable 316 stainless steel motor housing
• Long life in wet, corrosive environment – waterproof to IPx6
• Waterproof cable connection to motor housing

MO T OR SPECIFICA TIONS
Models
o
Sweep angle adjustment 5 increments 223XBD Wiper Motor
o
Sweep angle range 40 - 90 o
Voltages 12V and 24V
Amp draw 3A (12V), 1.5A (24V)
Fuse size – slow-blow 6A (12V), 4A (24V) 258mm/10.20in
Torque 23Nm
Sweeps per minute 40 (low); 60 (high) 133mm/5.24in
Max arm length 31.1" (790mm) 100.5mm/3.96in
Max blade length 31.5" (800mm)

237mm/9.33in
External Series Arms & Blades
• Fits 223XBD wiper motor
• Stainless steel construction with brass heads
• Adjustable length wiper arms 150mm/5.91in
• Arms fold back for easy windshield cleaning
• Coated with durable low-glare polyester epoxy
249mm/9.80in
ARM & BLADE SPECIFICA TIONS
Fits motor(s)
14.8-20.7" (375-525mm)
Pantograph arm length 20.7-25.6" (525-650mm)
26.6-31.1" (675-790mm)
Finish Black External Series Blade
Arm length type Adjustable
Accepted blade length Up to 31.5" (800mm)
Springs Adjustable
Blade attachment method 5mm Bolt External Series Arm
Blade clip width .5" (12mm)
Washing jet Optional (see page 17)

MAX 46.9"
1190
mm
508.995.7000 23
