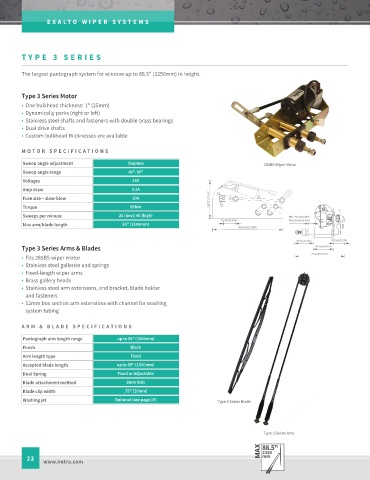

EX AL T O WIPER S Y S TEMS

T YPE 3 SERIES

The largest pantograph system for window up to 88.5" (2250mm) in height.

Type 3 Series Motor
• One bulkhead thickness: 1" (25mm)
• Dynamically parks (right or left)
• Stainless steel shafts and fasteners with double brass bearings
• Dual drive shafts
• Custom bulkhead thicknesses are available

MO T OR SPECIFICA TIONS
Models
Sweep angle adjustment Stepless 285BS Wiper Motor
o
Sweep angle range 40 - 90 o 285BS
Voltages 24V
Amp draw 3.2A 285BS
10A
Fuse size – slow-blow Min 25mm/0.98in 188mm/7.40in
Max 25mm/2.95in
Torque 85Nm
Sweeps per minute 25 (low); 40 (high) Min 25mm/0.98in
93mm/3.66in 57mm/2.24in 61mm/2.40in Max 25mm/2.95in 188mm/7.40in
Max arm/blade length 59" (1500mm) 102mm/4.02in 355mm/13.98in
252mm/9.92in
93mm/3.66in 57mm/2.24in 61mm/2.40in
Type 3 Series Arms & Blades 102mm/4.02in 355mm/13.98in
252mm/9.92in
• Fits 285BS wiper motor
• Stainless steel galleries and springs
• Fixed-length wiper arms
• Brass gallery heads
• Stainless steel arm extensions, end bracket, blade holder
and fasteners
• 12mm box section arm extensions with channel for washing
system tubing

ARM & BLADE SPECIFICA TIONS
Models

Pantograph arm length range up to 59"(1500mm)
Finish Black
Arm length type Fixed
Accepted blade length up to 59" (1500mm)
Dual Spring Fixed or Adjustable
Blade attachment method 8mm Bolt
Blade clip width .75" (20mm)
Washing jet Optional (see page 19) Type 3 Series Blade

Type 3 Series Arm

MAX 88.5"
2250
22 mm
