DEC CA WIPER S Y S TEMS

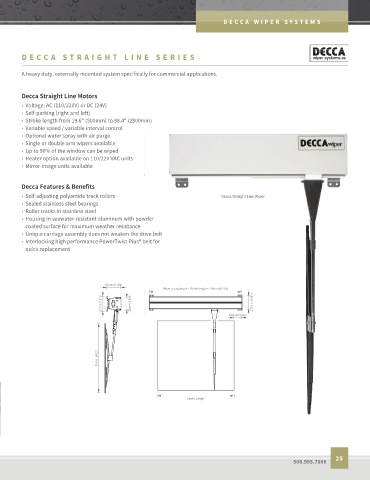

DEC CA S TR AIGHT LINE SERIES

A heavy duty, externally mounted system specifically for commercial applications.

Decca Straight Line Motors
• Voltage: AC (110/220V) or DC (24V)
• Self-parking (right and left)
• Stroke length from 19.6" (500mm) to 98.4" (2500mm)
• Variable speed / variable interval control
• Optional water spray with air purge
• Single or double arm wipers available
• Up to 90% of the window can be wiped
• Heater option available on 110/220 VAC units
• Mirror-image units available

Decca Features & Benefits
• Self-adjusting polyamide track rollers Decca Straight Line Wiper
• Sealed stainless steel bearings
• Roller tracks in stainless steel
• Housing in seawater-resistant aluminum with powder
coated surface for maximum weather resistance
• Unique carriage assembly does not weaken the drive belt
• Interlocking high performance PowerTwist Plus® belt for
quick replacement

183mm/7.20in
Wiper casing length = Stroke length + 210mm (8.27in)
200mm/7.87in 164mm/6.46in 175mm/6.89in

105mm/4.13in

Blade Length

Stroke Length

25
508.995.7000
