In Line Wiper
In Line Wiper
Pantograph Wiper
Pantograph Wiper

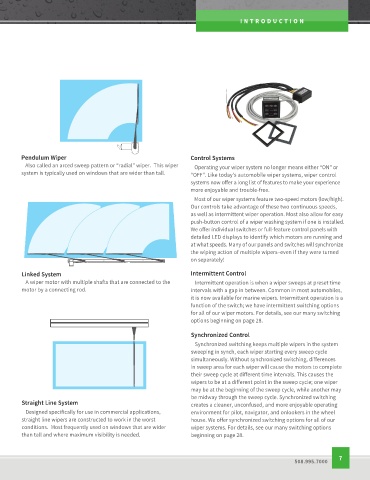

INTRODUC TION
Pendulum Wiper

Pendulum Wiper

Pendulum Wiper Control Systems
Linked System Also called an arced sweep pattern or “radial” wiper. This wiper Operating your wiper system no longer means either “ON” or
system is typically used on windows that are wider than tall. “OFF”. Like today’s automobile wiper systems, wiper control
systems now offer a long list of features to make your experience
Linked System more enjoyable and trouble-free.
Most of our wiper systems feature two-speed motors (low/high).
Our controls take advantage of these two continuous speeds,
as well as intermittent wiper operation. Most also allow for easy
push-button control of a wiper washing system if one is installed.
We offer individual switches or full-feature control panels with
detailed LED displays to identify which motors are running and
at what speeds. Many of our panels and switches will synchronize
the wiping action of multiple wipers–even if they were turned
on separately!

Linked System Intermittent Control
A wiper motor with multiple shafts that are connected to the Intermittent operation is when a wiper sweeps at preset time
motor by a connecting rod. intervals with a gap in between. Common in most automobiles,
it is now available for marine wipers. Intermittent operation is a
In Line Wiper function of the switch; we have intermittent switching options
for all of our wiper motors. For details, see our many switching
options beginning on page 28.

Synchronized Control
Synchronized switching keeps multiple wipers in the system
sweeping in synch, each wiper starting every sweep cycle
simultaneously. Without synchronized switching, differences
in sweep area for each wiper will cause the motors to complete
their sweep cycle at different time intervals. This causes the
wipers to be at a different point in the sweep cycle; one wiper
may be at the beginning of the sweep cycle, while another may
be midway through the sweep cycle. Synchronized switching
Pantograph Wiper Straight Line System creates a cleaner, unconfused, and more enjoyable operating
Designed specifically for use in commercial applications, environment for pilot, navigator, and onlookers in the wheel
straight line wipers are constructed to work in the worst house. We offer synchronized switching options for all of our
conditions. Most frequently used on windows that are wider wiper systems. For details, see our many switching options
than tall and where maximum visibility is needed. beginning on page 28.

7
508.995.7000

Pendulum Wiper

Linked System
