INTRODUC TION

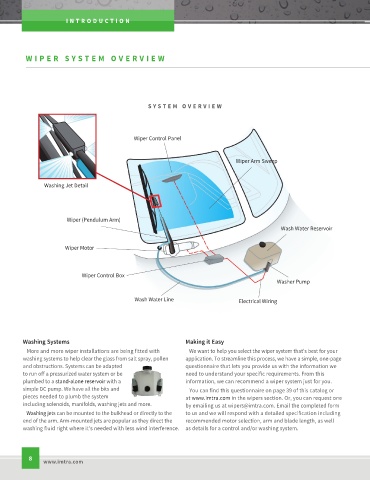

WIPER S Y S TEM O VER VIEW

S Y S TEM O VER VIEW

Wiper Control Panel

Wiper Arm Sweep

Washing Jet Detail

Wiper (Pendulum Arm)
Wash Water Reservoir

Wiper Motor

Wiper Control Box
Washer Pump

Wash Water Line Electrical Wiring

Washing Systems Making it Easy
More and more wiper installations are being fitted with We want to help you select the wiper system that’s best for your
washing systems to help clear the glass from salt spray, pollen application. To streamline this process, we have a simple, one-page
and obstructions. Systems can be adapted questionnaire that lets you provide us with the information we
to run off a pressurized water system or be need to understand your specific requirements. From this
plumbed to a stand-alone reservoir with a information, we can recommend a wiper system just for you.
simple DC pump. We have all the bits and You can find this questionnaire on page 39 of this catalog or
pieces needed to plumb the system at www.imtra.com in the wipers section. Or, you can request one
including solenoids, manifolds, washing jets and more. by emailing us at wipers@imtra.com. Email the completed form
Washing jets can be mounted to the bulkhead or directly to the to us and we will respond with a detailed specification including
end of the arm. Arm-mounted jets are popular as they direct the recommended motor selection, arm and blade length, as well
washing fluid right where it’s needed with less wind interference. as details for a control and/or washing system.
