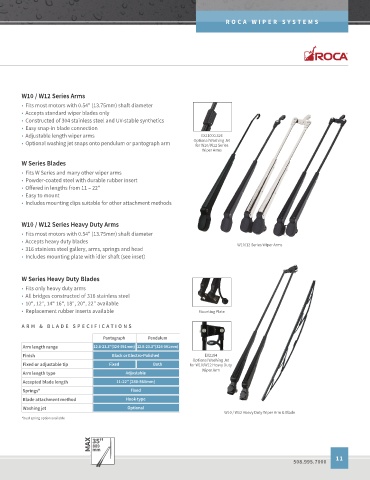

Page 11 - Imtra_Wipers

ROCA WIPER S Y S TEMS

W10 / W12 Series Arms
• Fits most motors with 0.54" (13.75mm) shaft diameter
• Accepts standard wiper blades only
• Constructed of 304 stainless steel and UV-stable synthetics
• Easy snap-in blade connection
• Adjustable length wiper arms EX21000.326
• Optional washing jet snaps onto pendulum or pantograph arm Optional Washing Jet
for W10/W12 Series
Wiper Arms
W Series Blades
• Fits W Series and many other wiper arms
• Powder-coated steel with durable rubber insert
• Offered in lengths from 11 – 22"
• Easy to mount
• Includes mounting clips suitable for other attachment methods

W10 / W12 Series Heavy Duty Arms

• Fits most motors with 0.54" (13.75mm) shaft diameter
• Accepts heavy duty blades
• 316 stainless steel gallery, arms, springs and head W10/12 Series Wiper Arms
• Includes mounting plate with idler shaft (see inset)

W Series Heavy Duty Blades
• Fits only heavy duty arms
• All bridges constructed of 316 stainless steel
• 10", 12", 14" 16", 18", 20", 22" available
• Replacement rubber inserts available Mounting Plate

ARM & BLADE SPECIFICA TIONS

Type Pantograph Pendulum
Arm length range 12.8-23.3"(324-591mm) 12.8-23.3"(324-591mm)
Finish Black or Electro-Polished EX2184
Optional Washing Jet
Fixed or adjustable tip Fixed Both for W10/W12 Heavy Duty
Wiper Arm
Arm length type Adjustable
Accepted blade length 11-22" (280-560mm)
Springs* Fixed
Blade attachment method Hook-type
Washing jet Optional
W10 / W12 Heavy Duty Wiper Arm & Blade
*Dual spring option available

MAX 35"
889
mm
11
508.995.7000
