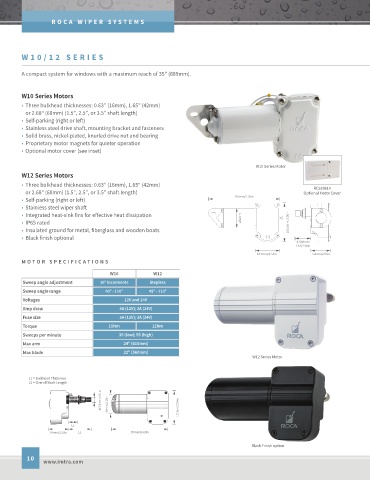

ROCA WIPER S Y S TEMS

W10/12 SERIES

A compact system for windows with a maximum reach of 35" (889mm).

W10 Series Motors
• Three bulkhead thicknesses: 0.63” (16mm), 1.65” (42mm)
or 2.68” (68mm) (1.5”, 2.5”, or 3.5” shaft length)
• Self-parking (right or left)
• Stainless steel drive shaft, mounting bracket and fasteners
• Solid brass, nickel-plated, knurled drive nut and bearing
• Proprietary motor magnets for quieter operation
• Optional motor cover (see inset)

W10 Series Motor
W12 Series Motors
• Three bulkhead thicknesses: 0.63" (16mm), 1.65" (42mm)
RC528614
or 2.68" (68mm) (1.5", 2.5", or 3.5" shaft length) Optional Motor Cover
187mm/7.36in
• Self-parking (right or left)
• Stainless steel wiper shaft
• Integrated heat-sink fins for effective heat dissipation ø52mm
• IP65 rated 100.5mm/3.96in
• Insulated ground for metal, fiberglass and wooden boats
• Black finish optional
42/68mm
1.65/2.68in
64.5mm/2.54in 52mm/2.05in
MO T OR SPECIFICA TIONS

W10 W12
Sweep angle adjustment 10° Increments Stepless
Sweep angle range 40° - 110° 45° - 110°
Voltages 12V and 24V
Amp draw 4A (12V); 2A (24V)
Fuse size 5A (12V); 3A (24V)
Torque 10Nm 12Nm
Sweeps per minute 35 (low); 55 (high)
Max arm 24" (610mm)
Max blade 22" (560mm)
W12 Series Motor

L1 = Bulkhead Thickness
L2 = Overall Shaft Length
ø13.8mm/0.54in. 58mm/2.28in. 100mm/3.94in

L1
59mm/2.32in L2 170mm/6.69in
Black Finish option

10
