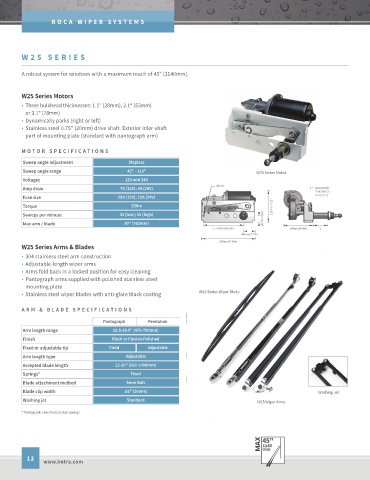

ROCA WIPER S Y S TEMS

W25 SERIES

A robust system for windows with a maximum reach of 45" (1140mm).

W25 Series Motors
• Three bulkhead thicknesses: 1.1" (28mm), 2.1" (53mm)
or 3.1" (78mm)
• Dynamically parks (right or left)
• Stainless steel 0.75" (20mm) drive shaft. Exterior idler-shaft
part of mounting plate (standard with pantograph arm)

MO T OR SPECIFICA TIONS

Sweep angle adjustment Stepless
Sweep angle range 45 – 110 o W25 Series Motor
o
Voltages 12V and 24V
ø6mm
Amp draw 7A (12V); 4A (24V) L = BULKHEAD
THICKNESS
Fuse size 25A (12V); 15A (24V) AS LISTED
Torque 25Nm 115mm/4.53in
Sweeps per minute 35 (low); 55 (high) 24mm/0.95in
Max arm / blade 30" (762mm)
c-c 143mm/5.63in 104mm/4.09in L
44mm/1.73in
194mm/7.64in
W25 Series Arms & Blades
• 304 stainless steel arm construction
• Adjustable-length wiper arms
• Arms fold back in a locked position for easy cleaning
• Pantograph arms supplied with polished stainless steel
mounting plate
• Stainless steel wiper blades with anti-glare black coating W25 Series Wiper Blade

ARM & BLADE SPECIFICA TIONS

Type Pantograph Pendulum
Arm length range 18.5-29.5" (470-750mm)
Finish Black or Electro-Polished
Fixed or adjustable tip Fixed Adjustable
Arm length type Adjustable
Accepted blade length 22-30" (560-1000mm)
Springs* Fixed
Blade attachment method 6mm Bolt
Blade clip width .63" (16mm) Washing Jet
Washing jet Standard W25 Wiper Arms

* Pantograph arms feature dual springs

MAX 45"
1140
mm
12
