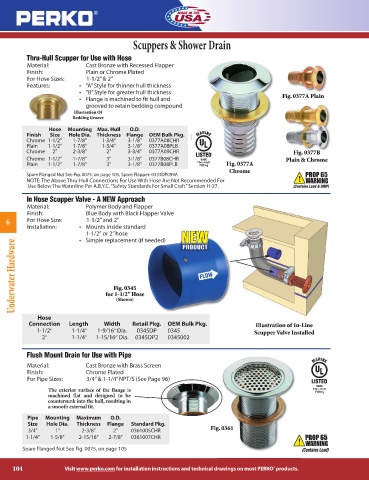

Scuppers & Shower Drain

Thru-Hull Scupper for Use with Hose
Material: Cast Bronze with Recessed Flapper
Finish: Plain or Chrome Plated
For Hose Sizes: 1-1/2” & 2”
Features: • “A” Style for thinner hull thickness
• “B” Style for greater hull thickness
• Flange is machined to fit hull and Fig. 0377A Plain
grooved to retain bedding compound
Illustration Of
Bedding Groove
Hose Mounting Max. Hull O.D.
Finish Size Hole Dia. Thickness Flange OEM Bulk Pkg.
Chrome 1-1/2” 1-7/8” 1-3/4” 3-1/8” 0377A08CHR
Plain 1-1/2” 1-7/8” 1-3/4” 3-1/8” 0377A08PLB
Chrome 2” 2-3/8” 2” 3-3/4” 0377A09CHR Fig. 0377B

Chrome 1-1/2” 1-7/8” 3” 3-1/8” 0377B08CHR Plain & Chrome
Plain 1-1/2” 1-7/8” 3” 3-1/8” 0377B08PLB Fig. 0377A
Chrome
Spare Flanged Nut See Fig. 0075, on page 105, Spare Flapper: 0333DP099A
NOTE: The Above Thru-Hull Connections For Use With Hose Are Not Recommended For
Use Below The Waterline Per A.B.Y.C. “Safety Standards For Small Craft” Section H-27.
In Hose Scupper Valve - A NEW Approach
Material: Polymer Body and Flapper
Finish: Blue Body with Black Flapper Valve
6 For Hose Size: 1-1/2” and 2”
Installation: • Mounts inside standard
1-1/2” or 2” hose
• Simple replacement (if needed)
Underwater Hardware for 1-1/2” Hose

Fig. 0345

Hose (Shown)
Connection Length Width Retail Pkg. OEM Bulk Pkg. Illustration of In-Line
1-1/2” 1-1/4” 1-9/16” Dia. 0345DP 0345 Scupper Valve Installed
2” 1-1/4” 1-15/16” Dia. 0345DP2 0345002

Flush Mount Drain for Use with Pipe
Material: Cast Bronze with Brass Screen
Finish: Chrome Plated
For Pipe Sizes: 3/4” & 1-1/4” NPT/S (See Page 96)
The exterior surface of the flange is
machined flat and designed to be
countersunk into the hull, resulting in
a smooth external fit.

Pipe Mounting Maximum O.D.
Size Hole Dia. Thickness Flange Standard Pkg.
Fig. 0361
3/4” 1” 2-3/8” 2” 0361005CHR
1-1/4” 1-5/8” 2-15/16” 2-7/8” 0361007CHR
Spare Flanged Nut See Fig. 0075, on page 105
