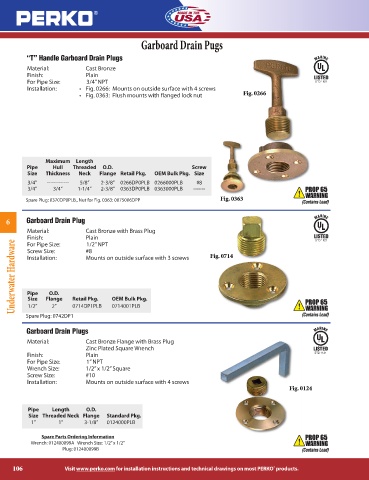

Garboard Drain Pugs

“T” Handle Garboard Drain Plugs

Material: Cast Bronze
Finish: Plain
For Pipe Size: 3/4” NPT
Installation: • Fig. 0266: Mounts on outside surface with 4 screws
• Fig. 0363: Flush mounts with flanged lock nut Fig. 0266

Maximum Length
Pipe Hull Threaded O.D. Screw
Size Thickness Neck Flange Retail Pkg. OEM Bulk Pkg. Size
3/4” ------------- 5/8” 2-3/8” 0266DP0PLB 0266000PLB #8
3/4” 3/4” 1-1/4” 2-3/8” 0363DP0PLB 0363000PLB -------
Spare Plug: 0370DP0PLB., Nut for Fig. 0363: 0075006DPP Fig. 0363

6 Garboard Drain Plug
Material: Cast Bronze with Brass Plug
Finish: Plain Fig. 0714
Underwater Hardware Pipe O.D.
For Pipe Size:
1/2” NPT
Screw Size:
#8
Installation:
Mounts on outside surface with 3 screws

Size Flange Retail Pkg. OEM Bulk Pkg.
1/2” 2” 0714DP1PLB 0714001PLB
Spare Plug: 0742DP1

Garboard Drain Plugs
Material: Cast Bronze Flange with Brass Plug
Zinc Plated Square Wrench
Finish: Plain
For Pipe Size: 1” NPT
Wrench Size: 1/2” x 1/2” Square
Screw Size: #10
Installation: Mounts on outside surface with 4 screws
Fig. 0124

Pipe Length O.D.
Size Threaded Neck Flange Standard Pkg.
1” 1” 3-1/8” 0124000PLB

Spare Parts Ordering Information
Wrench: 012400099A Wrench Size: 1/2” x 1/2”
Plug: 012400099B
