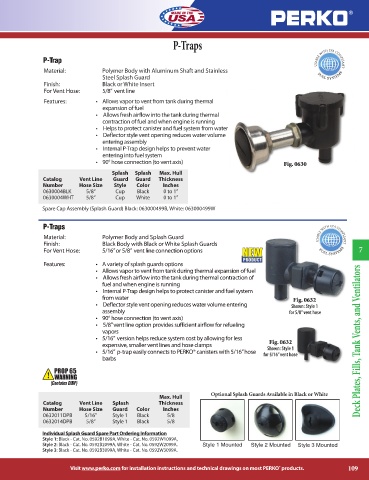

Page 109 - Perko

P-Traps

P-Trap
Material: Polymer Body with Aluminum Shaft and Stainless USABLE WITH EPA COMPLIANT
FUEL SYSTEMS
Steel Splash Guard
Finish: Black or White Insert
For Vent Hose: 5/8” vent line
Features: • Allows vapor to vent from tank during thermal
expansion of fuel
• Allows fresh airflow into the tank during thermal
contraction of fuel and when engine is running
• Helps to protect canister and fuel system from water
• Deflector style vent opening reduces water volume
entering assembly
• Internal P-Trap design helps to prevent water
entering into fuel system
• 90° hose connection (to vent axis) Fig. 0630

Splash Splash Max. Hull
Catalog Vent Line Guard Guard Thickness
Number Hose Size Style Color Inches
0630004BLK 5/8” Cup Black 0 to 1”
0630004WHT 5/8” Cup White 0 to 1”
Spare Cap Assembly (Splash Guard) Black: 063000499B, White: 063000499W

P-Traps
Material: Polymer Body and Splash Guard
Finish: Black Body with Black or White Splash Guards USABLE WITH EPA COMPLIANT
For Vent Hose: 5/16” or 5/8” vent line connection options FUEL SYSTEMS 7
Features: • A variety of splash guards options
• Allows vapor to vent from tank during thermal expansion of fuel
• Allows fresh airflow into the tank during thermal contraction of
fuel and when engine is running
• Internal P-Trap design helps to protect canister and fuel system
from water Fig. 0632
• Deflector style vent opening reduces water volume entering Shown: Style 1
assembly for 5/8” vent hose
• 90° hose connection (to vent axis)
• 5/8” vent line option provides sufficient airflow for refueling
vapors
• 5/16” version helps reduce system cost by allowing for less Deck Plates, Fills, Tank Vents, and Ventilators
Fig. 0632
expensive, smaller vent lines and hose clamps Shown: Style 1
• 5/16” p-trap easily connects to PERKO® canisters with 5/16” hose for 5/16” vent hose
barbs

Optional Splash Guards Available in Black or White
Max. Hull
Catalog Vent Line Splash Thickness
Number Hose Size Guard Color Inches
0632011DPB 5/16” Style 1 Black 5/8
0632014DPB 5/8” Style 1 Black 5/8
Individual Splash Guard Spare Part Ordering Information
Style 1: Black - Cat. No. 0592B1099A, White - Cat. No. 0592W1099A,
Style 2: Black - Cat. No. 0592B2099A, White - Cat. No. 0592W2099A. Style 1 Mounted Style 2 Mounted Style 3 Mounted
Style 3: Black - Cat. No. 0592B3099A, White - Cat. No. 0592W3099A.

®
