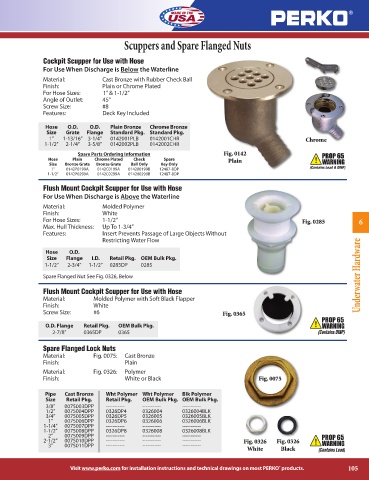

Page 105 - Perko

Scuppers and Spare Flanged Nuts

Cockpit Scupper for Use with Hose
For Use When Discharge is Below the Waterline
Material: Cast Bronze with Rubber Check Ball
Finish: Plain or Chrome Plated
For Hose Sizes: 1” & 1-1/2”
Angle of Outlet: 45°
Screw Size: #8
Features: Deck Key Included

Hose O.D. O.D. Plain Bronze Chrome Bronze
Size Grate Flange Standard Pkg. Standard Pkg.
1” 1-13/16” 3-1/4” 0142001PLB 0142001CHR Chrome
1-1/2” 2-1/4” 3-5/8” 0142002PLB 0142002CHR
Spare Parts Ordering Information Fig. 0142
Hose Plain Chrome Plated Check Spare Plain
Size Bronze Grate Bronze Grate Ball Only Key Only
1” 0142P0199A 0142C0199A 014200199B 12487-8DP
1-1/2” 0142P0299A 0142C0299A 014200299B 12487-8DP

Flush Mount Cockpit Scupper for Use with Hose
For Use When Discharge is Above the Waterline
Material: Molded Polymer
Finish: White
For Hose Sizes: 1-1/2” Fig. 0285 6
Max. Hull Thickness: Up To 1-3/4”
Features: Insert Prevents Passage of Large Objects Without
Restricting Water Flow

Hose O.D.
Size Flange I.D. Retail Pkg. OEM Bulk Pkg.
1-1/2” 2-3/4” 1-1/2” 0285DP 0285
Spare Flanged Nut See Fig. 0326, Below Underwater Hardware

Flush Mount Cockpit Scupper for Use with Hose
Material: Molded Polymer with Soft Black Flapper
Finish: White
Screw Size: #6 Fig. 0365

O.D. Flange Retail Pkg. OEM Bulk Pkg.
2-7/8” 0365DP 0365

Spare Flanged Lock Nuts
Material: Fig. 0075: Cast Bronze
Finish: Plain
Material: Fig. 0326: Polymer
Finish: White or Black Fig. 0075

Pipe Cast Bronze Wht Polymer Wht Polymer Blk Polymer
Size Retail Pkg. Retail Pkg. OEM Bulk Pkg. OEM Bulk Pkg.

3/8” 0075003DPP ----------- ----------- -----------
1/2” 0075004DPP 0326DP4 0326004 0326004BLK
3/4” 0075005DPP 0326DP5 0326005 0326005BLK
1” 0075006DPP 0326DP6 0326006 0326006BLK
1-1/4” 0075007DPP ----------- ----------- -----------
1-1/2” 0075008DPP 0326DP8 0326008 0326008BLK
2” 0075009DPP ----------- ----------- -----------
2-1/2” 0075010DPP ----------- ----------- ----------- Fig. 0326 Fig. 0326
3” 0075011DPP ----------- ----------- -----------
White Black

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 105
