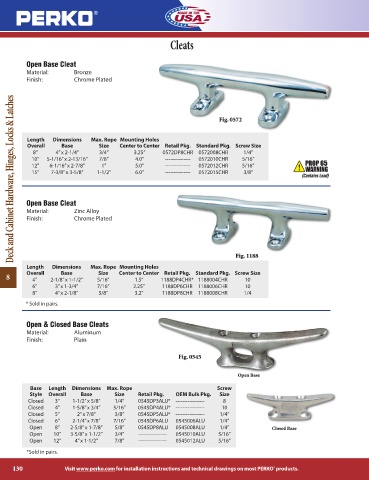

Page 130 - Perko

Cleats

Open Base Cleat
Material: Bronze
Finish: Chrome Plated

Deck and Cabinet Hardware, Hinges, Locks & Latches

Fig. 0572

Length Dimensions Max. Rope Mounting Holes
Overall Base Size Center to Center Retail Pkg. Standard Pkg. Screw Size
8” 4” x 2-1/4” 3/4” 3.25” 0572DP8CHR 0572008CHR 1/4”
10” 5-1/16” x 2-13/16” 7/8” 4.0” --------------- 0572010CHR 5/16”
12” 6-1/16” x 2-7/8” 1” 5.0” --------------- 0572012CHR 5/16”
15” 7-3/8” x 3-5/8” 1-1/2” 6.0” --------------- 0572015CHR 3/8”

Open Base Cleat
Material: Zinc Alloy
Finish: Chrome Plated

Fig. 1188
Length Dimensions Max. Rope Mounting Holes
Overall Base Size Center to Center Retail Pkg. Standard Pkg. Screw Size
8 4” 2-1/8” x 1-1/2” 5/16” 1.5” 1188DP4CHR* 1188004CHR 10
6” 3” x 1-3/4” 7/16” 2.25” 1188DP6CHR 1188006CHR 10
8” 4” x 2-1/8” 5/8” 3.2” 1188DP8CHR 1188008CHR 1/4

* Sold in pairs.

Open & Closed Base Cleats
Material: Aluminum
Finish: Plain

Fig. 0545

Open Base

Base Length Dimensions Max. Rope Screw
Style Overall Base Size Retail Pkg. OEM Bulk Pkg. Size
Closed 3” 1-1/2” x 5/8” 1/4” 0545DP3ALU* ----------------- 8
Closed 4” 1-5/8” x 3/4” 5/16” 0545DP4ALU* ----------------- 10
Closed 5” 2” x 7/8” 3/8” 0545DP5ALU* ----------------- 1/4”
Closed 6” 2-1/4” x 7/8” 7/16” 0545DP6ALU 0545006ALU 1/4”
Open 8” 2-5/8” x 1-7/8” 5/8” 0545DP8ALU 0545008ALU 1/4” Closed Base
Open 10” 3-5/8” x 1-1/2” 3/4” ----------------- 0545010ALU 5/16”
Open 12” 4” x 1-1/2” 7/8” ----------------- 0545012ALU 5/16”

*Sold in pairs.

130 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
