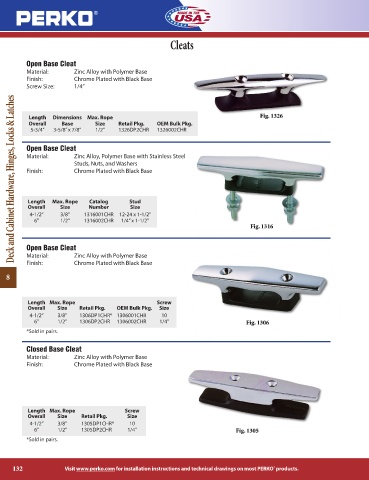

Page 132 - Perko

Cleats

Open Base Cleat
Material: Zinc Alloy with Polymer Base
Finish: Chrome Plated with Black Base
Screw Size: 1/4”
Deck and Cabinet Hardware, Hinges, Locks & Latches

Length Dimensions Max. Rope Fig. 1326
Overall Base Size Retail Pkg. OEM Bulk Pkg.
5-3/4” 3-5/8” x 7/8” 1/2” 1326DP2CHR 1326002CHR

Open Base Cleat
Material: Zinc Alloy, Polymer Base with Stainless Steel
Studs, Nuts, and Washers
Finish: Chrome Plated with Black Base

Length Max. Rope Catalog Stud
Overall Size Number Size
4-1/2” 3/8” 1316001CHR 12-24 x 1-1/2”
6” 1/2” 1316002CHR 1/4” x 1-1/2”
Fig. 1316

Open Base Cleat
Material: Zinc Alloy with Polymer Base
Finish: Chrome Plated with Black Base

8

Length Max. Rope Screw
Overall Size Retail Pkg. OEM Bulk Pkg. Size
4-1/2” 3/8” 1306DP1CHR* 1306001CHR 10
6” 1/2” 1306DP2CHR 1306002CHR 1/4” Fig. 1306
*Sold in pairs.

Closed Base Cleat
Material: Zinc Alloy with Polymer Base
Finish: Chrome Plated with Black Base

Length Max. Rope Screw
Overall Size Retail Pkg. Size
4-1/2” 3/8” 1305DP1CHR* 10
6” 1/2” 1305DP2CHR 1/4” Fig. 1305
*Sold in pairs.

132 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
