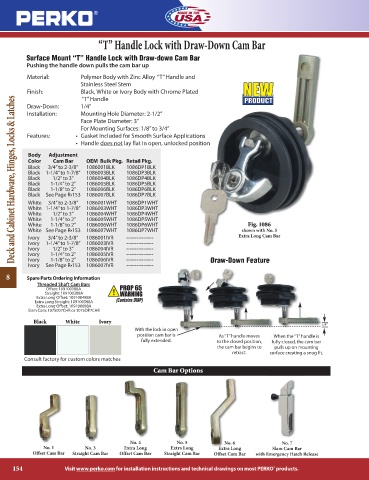

“T” Handle Lock with Draw-Down Cam Bar

Surface Mount “T” Handle Lock with Draw-down Cam Bar
Pushing the handle down pulls the cam bar up
Material: Polymer Body with Zinc Alloy “T” Handle and
Stainless Steel Stem
Finish: Black, White or Ivory Body with Chrome Plated
Deck and Cabinet Hardware, Hinges, Locks & Latches
“T” Handle
Draw-Down: 1/4”
Installation: Mounting Hole Diameter: 2-1/2”
Face Plate Diameter: 3”
For Mounting Surfaces: 1/8” to 3/4”
Features: • Gasket Included for Smooth Surface Applications
• Handle does not lay flat in open, unlocked position
Body Adjustment
Color Cam Bar OEM Bulk Pkg. Retail Pkg.
Black 3/4” to 2-3/8” 1086001BLK 1086DP1BLK
Black 1-1/4” to 1-7/8” 1086003BLK 1086DP3BLK
Black 1/2” to 3” 1086004BLK 1086DP4BLK
Black 1-1/4” to 2” 1086005BLK 1086DP5BLK
Black 1-1/8” to 2” 1086006BLK 1086DP6BLK
Black See Page R•153 1086007BLK 1086DP7BLK
White 3/4” to 2-3/8” 1086001WHT 1086DP1WHT
White 1-1/4” to 1-7/8” 1086003WHT 1086DP3WHT
White 1/2” to 3” 1086004WHT 1086DP4WHT
White 1-1/4” to 2” 1086005WHT 1086DP5WHT
White 1-1/8” to 2” 1086006WHT 1086DP6WHT Fig. 1086
White See Page R•153 1086007WHT 1086DP7WHT shown with No. 5
Ivory 3/4” to 2-3/8” 1086001IVR ---------------- Extra Long Cam Bar
Ivory 1-1/4” to 1-7/8” 1086003IVR ----------------
Ivory 1/2” to 3” 1086004IVR ----------------
Ivory 1-1/4” to 2” 1086005IVR ----------------
Ivory 1-1/8” to 2” 1086006IVR ---------------- Draw-Down Feature
Ivory See Page R•153 1086007IVR ----------------
8 Spare Parts Ordering Information
Threaded Shaft Cam Bars
Offset: 109100188A
Straight: 109100388A
Extra Long Offset: 109100488A
Extra Long Straight: 109100588A
Extra Long Offset: 109100688A
Slam Cam: 1075007CHR or 1075DP7CHR
Black White Ivory
1/4”
With the lock in open
position cam bar is As “T” handle moves When the “T” handle is
fully extended. to the closed position, fully closed, the cam bar
the cam bar begins to pulls up on mounting
retract. surface creating a snug fit.
Consult factory for custom colors matches
Cam Bar Options

No. 4 No. 5 No. 6 No. 7
No. 1 No. 3 Extra Long Extra Long Extra Long Slam Cam Bar
Offset Cam Bar Straight Cam Bar Offset Cam Bar Straight Cam Bar Offset Cam Bar with Emergency Hatch Release

154 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
