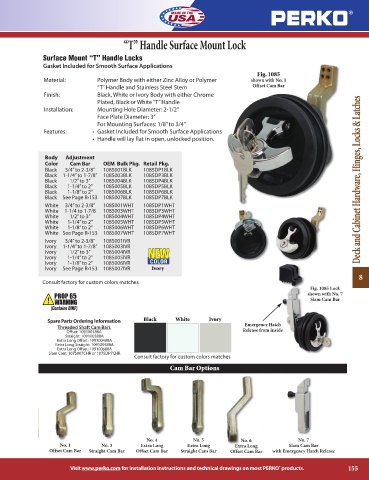

“T” Handle Surface Mount Lock

               Surface Mount “T” Handle Locks
               Gasket Included for Smooth Surface Applications
                                                                                     Fig. 1085
               Material:                        Polymer Body with either Zinc Alloy or Polymer  shown with No. 1
                                 “T” Handle and Stainless Steel Stem                Offset Cam Bar
               Finish:                             Black, White or Ivory Body with either Chrome
                                 Plated, Black or White “T” Handle
               Installation:                  Mounting Hole Diameter: 2-1/2”
                                                        Face Plate Diameter: 3”
                                                        For Mounting Surfaces: 1/8” to 3/4”
               Features:                    •  Gasket Included for Smooth Surface Applications
                                                     •  Handle will lay flat in open, unlocked position.


                  Body       Adjustment
                  Color          Cam Bar           OEM  Bulk Pkg.   Retail Pkg.
                  Black       3/4” to 2-3/8”       1085001BLK          1085DP1BLK
                  Black     1-1/4” to 1-7/8”     1085003BLK          1085DP3BLK
                  Black           1/2” to 3”           1085004BLK          1085DP4BLK                                  Deck and Cabinet Hardware, Hinges, Locks & Latches
                  Black         1-1/4” to 2”         1085005BLK          1085DP5BLK
                  Black         1-1/8” to 2”         1085006BLK          1085DP6BLK
                  Black     See Page R•153     1085007BLK          1085DP7BLK
                  White     3/4” to 2-3/8”       1085001WHT        1085DP1WHT
                  White     1-1/4 to 1-7/8      1085003WHT        1085DP3WHT
                  White         1/2” to 3”           1085004WHT        1085DP4WHT
                  White       1-1/4” to 2”         1085005WHT        1085DP5WHT
                  White       1-1/8” to 2”         1085006WHT        1085DP6WHT
                  White   See Page R•153     1085007WHT        1085DP7WHT
                  Ivory       3/4” to 2-3/8”       1085001IVR
                  Ivory     1-1/4” to 1-7/8”     1085003IVR
                  Ivory           1/2” to 3”           1085004IVR
                  Ivory         1-1/4” to 2”         1085005IVR
                  Ivory         1-1/8” to 2”         1085006IVR
                  Ivory     See Page R•153     1085007IVR             Ivory
                                                                                                                      8
               Consult factory for custom colors matches
                                                                                                      Fig. 1085 Lock
                                                                                                     shown with No. 7
                                                                                                      Slam Cam Bar


                 Spare Parts Ordering Information  Black  White      Ivory
                                                                                 Emergency Hatch
                    Threaded Shaft Cam Bars
                       Offset: 109100188A                                       Release from inside
                      Straight: 109100388A
                    Extra Long Offset: 109100488A
                   Extra Long Straight: 109100588A
                    Extra Long Offset: 109100688A
                 Slam Cam: 1075007CHR or 1075DP7CHR
                                             Consult factory for custom colors matches
                                                         Cam Bar Options












                                                 No. 4          No. 5           No. 6             No. 7
                     No. 1        No. 3        Extra Long     Extra Long      Extra Long       Slam Cam Bar
                 Offset Cam Bar  Straight Cam Bar  Offset Cam Bar  Straight Cam Bar  Offset Cam Bar  with Emergency Hatch Release

                                                                                            ®
                        Visit www.perko.com for installation instructions and technical drawings on most PERKO products.  155
