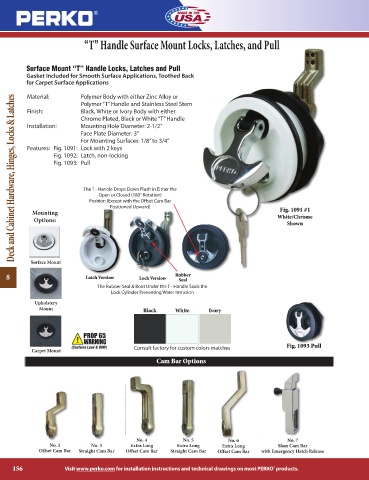

Page 156 - Perko

“T” Handle Surface Mount Locks, Latches, and Pull

Surface Mount “T” Handle Locks, Latches and Pull
Gasket Included for Smooth Surface Applications, Toothed Back
for Carpet Surface Applications

Deck and Cabinet Hardware, Hinges, Locks & Latches
Material: Polymer Body with either Zinc Alloy or
Polymer “T” Handle and Stainless Steel Stem
Finish: Black, White or Ivory Body with either
Chrome Plated, Black or White “T” Handle
Installation: Mounting Hole Diameter: 2-1/2”
Face Plate Diameter: 3”
For Mounting Surfaces: 1/8” to 3/4”
Features: Fig. 1091: Lock with 2 keys
Fig. 1092: Latch, non-locking
Fig. 1093: Pull

The T - Handle Drops Down Flush in Either the
Open or Closed (180° Rotation)
Position (Except with the Offset Cam Bar
Positioned Upward)
Mounting Fig. 1091 #1
White/Chrome
Options:
Shown

Surface Mount

8 Latch Version Lock Version Rubber
Seal
The Rubber Seal & Boot Under the T - Handle Seals the
Lock Cylinder Preventing Water Intrusion
Upholstery
Mount Black White Ivory

Fig. 1093 Pull
Consult factory for custom colors matches
Carpet Mount
Cam Bar Options

No. 4 No. 5 No. 6 No. 7
No. 1 No. 3 Extra Long Extra Long Extra Long Slam Cam Bar
Offset Cam Bar Straight Cam Bar Offset Cam Bar Straight Cam Bar Offset Cam Bar with Emergency Hatch Release

156 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
