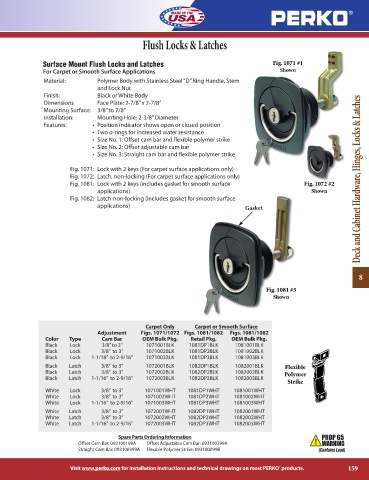

Page 159 - Perko

Flush Locks & Latches

Surface Mount Flush Locks and Latches Fig. 1071 #1
For Carpet or Smooth Surface Applications Shown
Material: Polymer Body with Stainless Steel “D” Ring Handle, Stem
and Lock Nut
Finish: Black or White Body
Dimensions Face Plate: 2-7/8” x 2-7/8”
Mounting Surface: 3/8” to 7/8”
Installation: Mounting Hole: 2-3/8” Diameter
Features: • Position indicator shows open or closed position
• Two o-rings for increased water resistance
• Size No. 1: Offset cam bar and flexible polymer strike
• Size No. 2: Offset adjustable cam bar
• Size No. 3: Straight cam bar and flexible polymer strike

Fig. 1071: Lock with 2 keys (For carpet surface applications only)
Fig. 1072: Latch, non-locking (For carpet surface applications only) Deck and Cabinet Hardware, Hinges, Locks & Latches
Fig. 1081: Lock with 2 keys (includes gasket for smooth surface Fig. 1072 #2
applications) Shown
Fig. 1082: Latch-non-locking (includes gasket for smooth surface
applications) Gasket

8

Fig. 1081 #3
Shown

Carpet Only Carpet or Smooth Surface
Adjustment Figs. 1071/1072 Figs. 1081/1082 Figs. 1081/1082
Color Type Cam Bar OEM Bulk Pkg. Retail Pkg. OEM Bulk Pkg.
Black Lock 3/8” to 3” 1071001BLK 1081DP1BLK 1081001BLK
Black Lock 3/8” to 3” 1071002BLK 1081DP2BLK 1081002BLK
Black Lock 1-1/16” to 2-9/16” 1071003BLK 1081DP3BLK 1081003BLK
Black Latch 3/8” to 3” 1072001BLK 1082DP1BLK 1082001BLK Flexible
Black Latch 3/8” to 3” 1072002BLK 1082DP2BLK 1082002BLK Polymer
Black Latch 1-1/16” to 2-9/16” 1072003BLK 1082DP3BLK 1082003BLK
Strike
White Lock 3/8” to 3” 1071001WHT 1081DP1WHT 1081001WHT
White Lock 3/8” to 3” 1071002WHT 1081DP2WHT 1081002WHT
White Lock 1-1/16” to 2-9/16” 1071003WHT 1081DP3WHT 1081003WHT
White Latch 3/8” to 3” 1072001WHT 1082DP1WHT 1082001WHT
White Latch 3/8” to 3” 1072002WHT 1082DP2WHT 1082002WHT
White Latch 1-1/16” to 2-9/16” 1072003WHT 1082DP3WHT 1082003WHT

Spare Parts Ordering Information
Offset Cam Bar: 093100199A Offset Adjustable Cam Bar: 093100299A
Straight Cam Bar: 093100399A Flexible Polymer Strike: 093100099B

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 159
®
