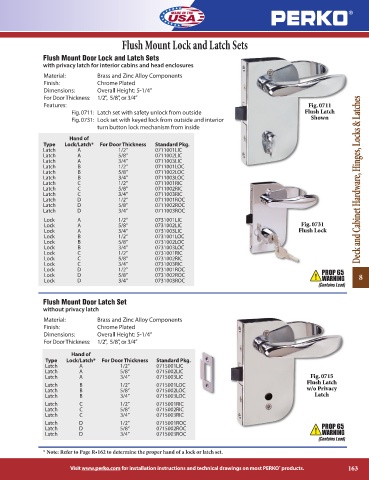

Page 163 - Perko

Flush Mount Lock and Latch Sets

Flush Mount Door Lock and Latch Sets
with privacy latch for interior cabins and head enclosures
Material: Brass and Zinc Alloy Components
Finish: Chrome Plated
Dimensions: Overall Height: 5-1/4”
For Door Thickness: 1/2", 5/8", or 3/4”
Features: Fig. 0711
Fig. 0711: Latch set with safety unlock from outside Flush Latch
Shown
Fig. 0731: Lock set with keyed lock from outside and interior
turn button lock mechanism from inside
Hand of
Type Lock/Latch* For Door Thickness Standard Pkg.
Latch A 1/2” 0711001LIC
Latch A 5/8” 0711002LIC
Latch A 3/4” 0711003LIC
Latch B 1/2” 0711001LOC
Latch B 5/8” 0711002LOC
Latch B 3/4” 0711003LOC Deck and Cabinet Hardware, Hinges, Locks & Latches
Latch C 1/2” 0711001RIC
Latch C 5/8” 0711002RIC
Latch C 3/4” 0711003RIC
Latch D 1/2” 0711001ROC
Latch D 5/8” 0711002ROC
Latch D 3/4” 0711003ROC
Lock A 1/2” 0731001LIC
Lock A 5/8” 0731002LIC Fig. 0731
Lock A 3/4” 0731003LIC Flush Lock
Lock B 1/2” 0731001LOC
Lock B 5/8” 0731002LOC
Lock B 3/4” 0731003LOC
Lock C 1/2” 0731001RIC
Lock C 5/8” 0731002RIC
Lock C 3/4” 0731003RIC
Lock D 1/2” 0731001ROC
Lock D 5/8” 0731002ROC 8
Lock D 3/4” 0731003ROC

Flush Mount Door Latch Set
without privacy latch
Material: Brass and Zinc Alloy Components
Finish: Chrome Plated
Dimensions: Overall Height: 5-1/4”
For Door Thickness: 1/2", 5/8", or 3/4”

Hand of
Type Lock/Latch* For Door Thickness Standard Pkg.
Latch A 1/2” 0715001LIC
Latch A 5/8” 0715002LIC
Latch A 3/4” 0715003LIC Fig. 0715
Flush Latch
Latch B 1/2” 0715001LOC
Latch B 5/8” 0715002LOC w/o Privacy
Latch B 3/4” 0715003LOC Latch
Latch C 1/2” 0715001RIC
Latch C 5/8” 0715002RIC
Latch C 3/4” 0715003RIC
Latch D 1/2” 0715001ROC
Latch D 5/8” 0715002ROC
Latch D 3/4” 0715003ROC

* Note: Refer to Page R•162 to determine the proper hand of a lock or latch set.

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 163
®
