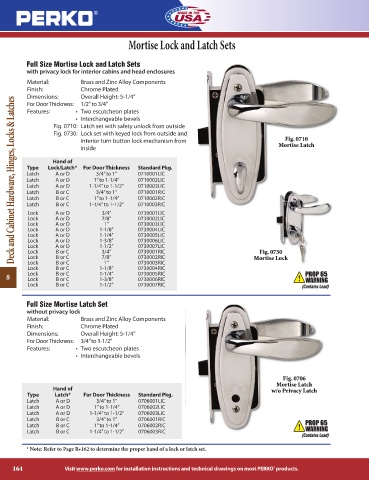

Mortise Lock and Latch Sets

Full Size Mortise Lock and Latch Sets
with privacy lock for interior cabins and head enclosures
Material: Brass and Zinc Alloy Components
Finish: Chrome Plated
Dimensions: Overall Height: 5-1/4”
Deck and Cabinet Hardware, Hinges, Locks & Latches
For Door Thickness: 1/2" to 3/4”
Features: • Two escutcheon plates
• Interchangeable bevels
Fig. 0710: Latch set with safety unlock from outside
Fig. 0730: Lock set with keyed lock from outside and
interior turn button lock mechanism from Fig. 0710
Mortise Latch
inside
Hand of
Type Lock/Latch* For Door Thickness Standard Pkg.
Latch A or D 3/4” to 1” 0710001LIC
Latch A or D 1” to 1-1/4” 0710002LIC
Latch A or D 1-1/4” to 1-1/2” 0710003LIC
Latch B or C 3/4” to 1” 0710001RIC
Latch B or C 1” to 1-1/4” 0710002RIC
Latch B or C 1-1/4” to 1-1/2” 0710003RIC
Lock A or D 3/4” 0730001LIC
Lock A or D 7/8” 0730002LIC
Lock A or D 1” 0730003LIC
Lock A or D 1-1/8” 0730004LIC
Lock A or D 1-1/4” 0730005LIC
Lock A or D 1-3/8” 0730006LIC
Lock A or D 1-1/2” 0730007LIC
Lock B or C 3/4” 0730001RIC Fig. 0730
Lock B or C 7/8” 0730002RIC Mortise Lock
Lock B or C 1” 0730003RIC
Lock B or C 1-1/8” 0730004RIC
Lock B or C 1-1/4” 0730005RIC
8 Lock B or C 1-3/8” 0730006RIC
Lock B or C 1-1/2” 0730007RIC

Full Size Mortise Latch Set
without privacy lock
Material: Brass and Zinc Alloy Components
Finish: Chrome Plated
Dimensions: Overall Height: 5-1/4”
For Door Thickness: 3/4” to 1-1/2”
Features: • Two escutcheon plates
• Interchangeable bevels

Fig. 0706
Mortise Latch
Hand of w/o Privacy Latch
Type Latch* For Door Thickness Standard Pkg.
Latch A or D 3/4” to 1” 0706001LIC
Latch A or D 1” to 1-1/4” 0706002LIC
Latch A or D 1-1/4” to 1-1/2” 0706003LIC
Latch B or C 3/4” to 1” 0706001RIC
Latch B or C 1” to 1-1/4” 0706002RIC
Latch B or C 1-1/4” to 1-1/2” 0706003RIC

* Note: Refer to Page R•162 to determine the proper hand of a lock or latch set.
