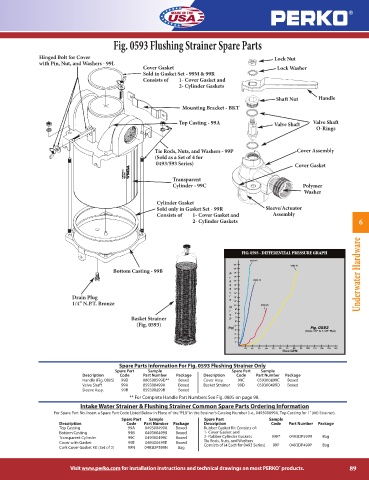

Fig. 0593 Flushing Strainer Spare Parts

Hinged Bolt for Cover Lock Nut
with Pin, Nut, and Washers - 99L
Cover Gasket Lock Washer
Sold in Gasket Set - 99M & 99R
Consists of 1- Cover Gasket and
2- Cylinder Gaskets

Shaft Nut Handle
Mounting Bracket - BKT

Top Casting - 99A Valve Shaft Valve Shaft
O-Rings

Tie Rods, Nuts, and Washers - 99P Cover Assembly
(Sold as a Set of 4 for
0493/593 Series)
Cover Gasket
Transparent
Cylinder - 99C Polymer
Washer
Cylinder Gasket
Sold only in Gasket Set - 99R Sleeve/Actuator
Consists of 1- Cover Gasket and Assembly
2- Cylinder Gaskets 6

Underwater Hardware

FIG. 0593 - DIFFERENTIAL PRESSURE GRAPH

Bottom Casting - 99B

Drain Plug
1/4” N.P.T. Bronze
Basket Strainer
(Fig. 0593)

Spare Parts Information For Fig. 0593 Flushing Strainer Only
Spare Part Sample Spare Part Sample
Description Code Part Number Package Description Code Part Number Package
Handle (Fig. 0805) 99D 080500599D** Boxed Cover Assy. 99C 059300499C Boxed
Valve Shaft 99A 059300499A Boxed Basket Strainer 99D 059300499D Boxed
Sleeve Assy. 99B 059300499B Boxed
** For Complete Handle Part Numbers See Fig. 0805 on page 98.
Intake Water Strainer & Flushing Strainer Common Spare Parts Ordering Information
For Spare Part No. Insert a Spare Part Code Listed Below in Place of the “PLB” in the Strainer’s Catalog Number (i.e., 049300699A, Top Casting for 1” (#6) Strainer).
Spare Part Sample Spare Part Sample
Description Code Part Number Package Description Code Part Number Package
Top Casting 99A 049300499A Boxed Rubber Gasket Kit Consists of:
Bottom Casting 99B 049300499B Boxed 1- Cover Gasket and
Transparent Cylinder 99C 049300499C Boxed 2- Rubber Cylinder Gaskets 99R* 0493DP599R Bag
Cover with Gasket 99E 049300499E Boxed Tie Rods, Nuts, and Washers
Consists of (4 Each for 0493 Series) 99P 0493DP499P Bag
Cork Cover Gasket Kit (Set of 2) 99N 0493DP599N Bag

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 89
®
