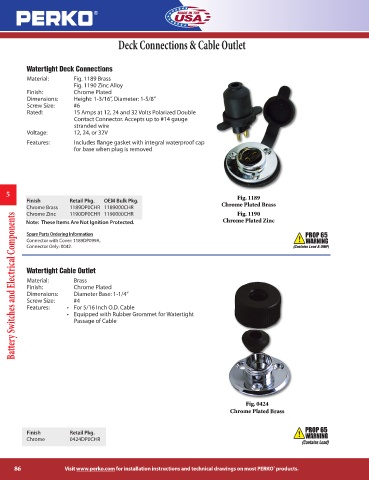

Page 86 - Perko

Deck Connections & Cable Outlet

Watertight Deck Connections

Material: Fig. 1189 Brass
Fig. 1190 Zinc Alloy
Finish: Chrome Plated
Dimensions: Height: 1-3/16”, Diameter: 1-5/8”
Screw Size: #6
Rated: 15 Amps at 12, 24 and 32 Volts Polarized Double
Contact Connector. Accepts up to #14 gauge
stranded wire
Voltage: 12, 24, or 32V
Features: Includes flange gasket with integral waterproof cap
for base when plug is removed

5
Finish Retail Pkg. OEM Bulk Pkg. Fig. 1189
Chrome Plated Brass
Chrome Brass 1189DP0CHR 1189000CHR
Chrome Zinc 1190DP0CHR 1190000CHR Fig. 1190
Battery Switches and Electrical Components
Note: These Items Are Not Ignition Protected. Chrome Plated Zinc
Spare Parts Ordering Information
Connector with Cover: 1189DP099A.
Connector Only: 0042.

Watertight Cable Outlet
Material: Brass
Finish: Chrome Plated
Dimensions: Diameter Base: 1-1/4”
Screw Size: #4
Features: • For 5/16 Inch O.D. Cable
• Equipped with Rubber Grommet for Watertight
Passage of Cable

Fig. 0424
Chrome Plated Brass

Finish Retail Pkg.
Chrome 0424DP0CHR

86 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
