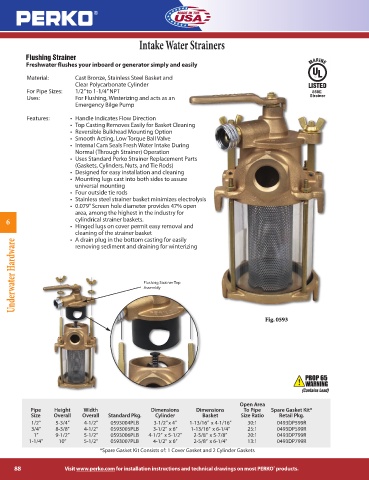

Page 88 - Perko

Intake Water Strainers

Flushing Strainer
Freshwater flushes your inboard or generator simply and easily
Material: Cast Bronze, Stainless Steel Basket and
Clear Polycarbonate Cylinder
For Pipe Sizes: 1/2” to 1-1/4” NPT
Uses: For Flushing, Winterizing and acts as an
Emergency Bilge Pump

Features: • Handle Indicates Flow Direction
• Top Casting Removes Easily for Basket Cleaning
• Reversible Bulkhead Mounting Option
• Smooth Acting, Low Torque Ball Valve
• Internal Cam Seals Fresh Water Intake During
Normal (Through Strainer) Operation
• Uses Standard Perko Strainer Replacement Parts
(Gaskets, Cylinders, Nuts, and Tie Rods)
• Designed for easy installation and cleaning
• Mounting lugs cast into both sides to assure
universal mounting
• Four outside tie rods
• Stainless steel strainer basket minimizes electrolysis
• 0.079” Screen hole diameter provides 47% open
area, among the highest in the industry for
6 cylindrical strainer baskets.
• Hinged lugs on cover permit easy removal and
cleaning of the strainer basket
• A drain plug in the bottom casting for easily
Underwater Hardware Flushing Strainer Top
removing sediment and draining for winterizing

Assembly

Fig. 0593

Open Area
Pipe Height Width Dimensions Dimensions To Pipe Spare Gasket Kit*
Size Overall Overall Standard Pkg. Cylinder Basket Size Ratio Retail Pkg.
1/2” 5-3/4” 4-1/2” 0593004PLB 3-1/2” x 4” 1-13/16” x 4-1/16” 30:1 0493DP599R
3/4” 8-3/8” 4-1/2” 0593005PLB 3-1/2” x 6” 1-13/16” x 6-1/4” 25:1 0493DP599R
1” 9-1/2” 5-1/2” 0593006PLB 4-1/2” x 5-1/2” 2-5/8” x 5-7/8” 20:1 0493DP799R
1-1/4” 10” 5-1/2” 0593007PLB 4-1/2” x 6” 2-5/8” x 6-1/4” 13:1 0493DP799R
*Spare Gasket Kit Consists of: 1 Cover Gasket and 2 Cylinder Gaskets

88 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
