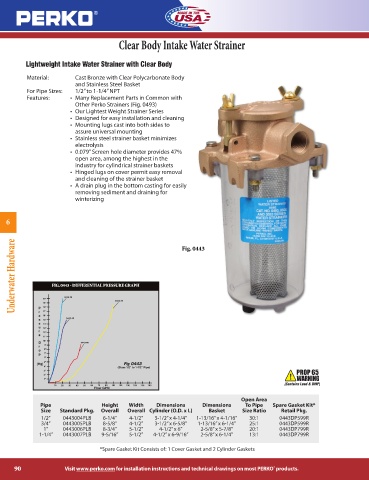

Page 90 - Perko

Clear Body Intake Water Strainer

Lightweight Intake Water Strainer with Clear Body

Material: Cast Bronze with Clear Polycarbonate Body
and Stainless Steel Basket
For Pipe Sizes: 1/2” to 1-1/4” NPT
Features: • Many Replacement Parts in Common with
Other Perko Strainers (Fig. 0493)
• Our Lightest Weight Strainer Series
• Designed for easy installation and cleaning
• Mounting lugs cast into both sides to
assure universal mounting
• Stainless steel strainer basket minimizes
electrolysis
• 0.079” Screen hole diameter provides 47%
open area, among the highest in the
industry for cylindrical strainer baskets
• Hinged lugs on cover permit easy removal
and cleaning of the strainer basket
• A drain plug in the bottom casting for easily
removing sediment and draining for
winterizing

6

Underwater Hardware FIG. 0443 - DIFFERENTIAL PRESSURE GRAPH Fig. 0443

Open Area
Pipe Height Width Dimensions Dimensions To Pipe Spare Gasket Kit*
Size Standard Pkg. Overall Overall Cylinder (O.D. x L) Basket Size Ratio Retail Pkg.
1/2” 0443004PLB 6-1/4” 4-1/2” 3-1/2” x 4-1/4” 1-13/16” x 4-1/16” 30:1 0443DP599R
3/4” 0443005PLB 8-5/8” 4-1/2” 3-1/2” x 6-5/8” 1-13/16” x 6-1/4” 25:1 0443DP599R
1” 0443006PLB 8-3/4” 5-1/2” 4-1/2” x 6” 2-5/8” x 5-7/8” 20:1 0443DP799R
1-1/4” 0443007PLB 9-5/16” 5-1/2” 4-1/2” x 6-9/16” 2-5/8” x 6-1/4” 13:1 0443DP799R

*Spare Gasket Kit Consists of: 1 Cover Gasket and 2 Cylinder Gaskets
