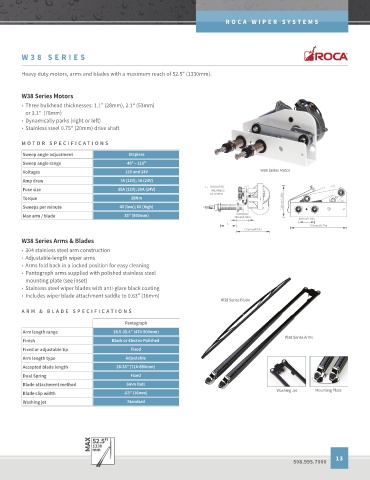

ROCA WIPER S Y S TEMS

W38 SERIES

Heavy duty motors, arms and blades with a maximum reach of 52.5" (1330mm).

W38 Series Motors
• Three bulkhead thicknesses: 1.1" (28mm), 2.1" (53mm)
or 3.1" (78mm)
• Dynamically parks (right or left)
• Stainless steel 0.75" (20mm) drive shaft

MO T OR SPECIFICA TIONS
Sweep angle adjustment Stepless
Sweep angle range 45 – 110 o
o
Voltages 12V and 24V W38 Series Motor
Amp draw 7A (12V); 4A (24V)
L = BULKHEAD
Fuse size 35A (12V); 20A (24V) THICKNESS
AS LISTED
Torque 38Nm 110mm/4.33in
Sweeps per minute 40 (low); 60 (high)
Max arm / blade 35" (890mm) 46mm/1.81in 60mm/2.36in
L
210mm/8.27in
125mm/4.92in
W38 Series Arms & Blades
• 304 stainless steel arm construction
• Adjustable-length wiper arms
• Arms fold back in a locked position for easy cleaning
• Pantograph arms supplied with polished stainless steel
mounting plate (see inset)
• Stainless steel wiper blades with anti-glare black coating
• Includes wiper blade attachment saddle to 0.63" (16mm)
W38 Series Blade

ARM & BLADE SPECIFICA TIONS
Pantograph
Arm length range 18.5-35.4" (470-900mm)
W38 Series Arms
Finish Black or Electro-Polished
Fixed or adjustable tip Fixed
Arm length type Adjustable
Accepted blade length 28-35" (710-890mm)
Dual Spring Fixed
Blade attachment method 6mm Bolt
Blade clip width .63" (16mm) Washing Jet Mounting Plate
Washing jet Optional Standard

MAX 52.5"
1330
mm
13
