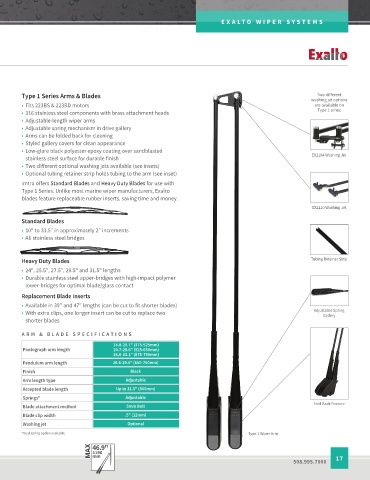

EX AL T O WIPER S Y S TEMS

Type 1 Series Arms & Blades Two different
washing jet options
• Fits 223BS & 223BD motors are available on
• 316 stainless steel components with brass attachment heads Type 1 arms:
• Adjustable-length wiper arms
• Adjustable spring mechanism in drive gallery
• Arms can be folded back for cleaning
• Styled gallery covers for clean appearance
• Low-glare black polyester epoxy coating over sandblasted
stainless steel surface for durable finish EX2184 Washing Jet
• Two different optional washing jets available (see insets)
• Optional tubing retainer strip holds tubing to the arm (see inset)
Imtra offers Standard Blades and Heavy Duty Blades for use with
Type 1 Series. Unlike most marine wiper manufacturers, Exalto
blades feature replaceable rubber inserts, saving time and money.
EX2110 Washing Jet

Standard Blades
• 10" to 31.5" in approximately 2" increments
• All stainless steel bridges

Heavy Duty Blades Tubing Retainer Strip
• 24", 25.5", 27.5", 29.5" and 31.5" lengths
• Durable stainless steel upper-bridges with high-impact polymer
lower-bridges for optimal blade/glass contact
Replacement Blade Inserts
• Available in 39" and 47" lengths (can be cut to fit shorter blades)
• With extra clips, one longer insert can be cut to replace two Adjustable Spring
Gallery
shorter blades
ARM & BLADE SPECIFICA TIONS
Fits motor(s)
14.8-20.7" (375-525mm)
Pantograph arm length 20.7-25.6" (525-650mm)
26.6-31.1" (675-790mm)
Pendulum arm length 26.6-29.5" (650-750mm)
Finish Black
Arm length type Adjustable
Accepted blade length Up to 31.5" (800mm)
Springs* Adjustable
Blade attachment method 5mm Bolt Fold Back Feature
Blade clip width .5" (12mm)
Washing jet Optional
*Dual spring option available Type 1 Wiper Arm

MAX 46.9"
1190
mm
