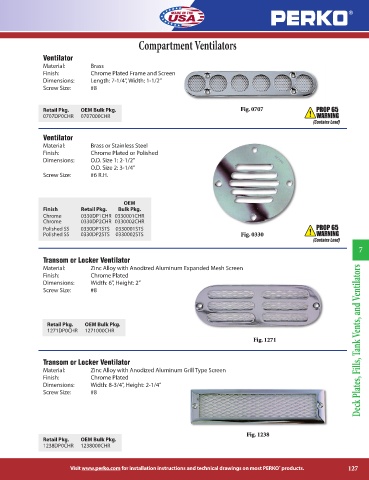

Page 127 - Perko

Compartment Ventilators

Ventilator
Material: Brass
Finish: Chrome Plated Frame and Screen
Dimensions: Length: 7-1/4”, Width: 1-1/2”
Screw Size: #8

Retail Pkg. OEM Bulk Pkg. Fig. 0707
0707DP0CHR 0707000CHR

Ventilator
Material: Brass or Stainless Steel
Finish: Chrome Plated or Polished
Dimensions: O.D. Size 1: 2-1/2”
O.D. Size 2: 3-1/4”
Screw Size: #6 R.H.

OEM
Finish Retail Pkg. Bulk Pkg.
Chrome 0330DP1CHR 0330001CHR
Chrome 0330DP2CHR 0330002CHR
Polished SS 0330DP1STS 0330001STS
Polished SS 0330DP2STS 0330002STS Fig. 0330

7
Transom or Locker Ventilator
Material: Zinc Alloy with Anodized Aluminum Expanded Mesh Screen
Finish: Chrome Plated
Dimensions: Width: 6”, Height: 2”
Screw Size: #8

Retail Pkg. OEM Bulk Pkg.
1271DP0CHR 1271000CHR
Fig. 1271 Deck Plates, Fills, Tank Vents, and Ventilators

Transom or Locker Ventilator
Material: Zinc Alloy with Anodized Aluminum Grill Type Screen
Finish: Chrome Plated
Dimensions: Width: 8-3/4”, Height: 2-1/4”
Screw Size: #8

Fig. 1238
Retail Pkg. OEM Bulk Pkg.
1238DP0CHR 1238000CHR

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 127
