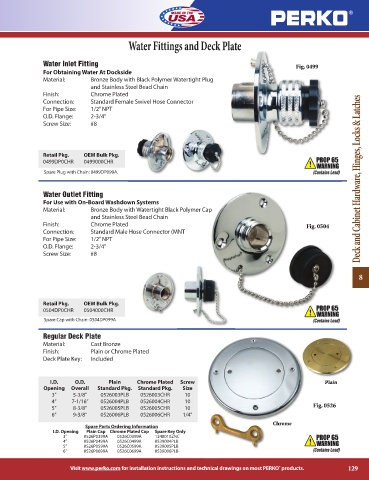

Page 129 - Perko

Water Fittings and Deck Plate

Water Inlet Fitting
Fig. 0499
For Obtaining Water At Dockside
Material: Bronze Body with Black Polymer Watertight Plug
and Stainless Steel Bead Chain
Finish: Chrome Plated
Connection: Standard Female Swivel Hose Connector
For Pipe Size: 1/2” NPT
O.D. Flange: 2-3/4”
Screw Size: #8

Retail Pkg. OEM Bulk Pkg.
0499DP0CHR 0499000CHR

Spare Plug with Chain: 0499DP099A. Deck and Cabinet Hardware, Hinges, Locks & Latches

Water Outlet Fitting
For Use with On-Board Washdown Systems
Material: Bronze Body with Watertight Black Polymer Cap
and Stainless Steel Bead Chain
Finish: Chrome Plated Fig. 0504
Connection: Standard Male Hose Connector (MNT
For Pipe Size: 1/2” NPT
O.D. Flange: 2-3/4”
Screw Size: #8

8

Retail Pkg. OEM Bulk Pkg.
0504DP0CHR 0504000CHR
Spare Cap with Chain: 0504DP099A

Regular Deck Plate
Material: Cast Bronze
Finish: Plain or Chrome Plated
Deck Plate Key: Included

I.D. O.D. Plain Chrome Plated Screw Plain
Opening Overall Standard Pkg. Standard Pkg. Size
3” 5-3/8” 0526003PLB 0526003CHR 10
4” 7-1/16” 0526004PLB 0526004CHR 10
5” 8-3/8” 0526005PLB 0526005CHR 10 Fig. 0526
6” 9-3/8” 0526006PLB 0526006CHR 1/4”
Chrome
Spare Parts Ordering Information
I.D. Opening Plain Cap Chrome Plated Cap Spare Key Only
3” 0526P0399A 0526C0399A 1248010ZNC
4” 0526P0499A 0526C0499A 0539004PLB
5” 0526P0599A 0526C0599A 0539005PLB
6” 0526P0699A 0526C0699A 0539006PLB

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 129
®
