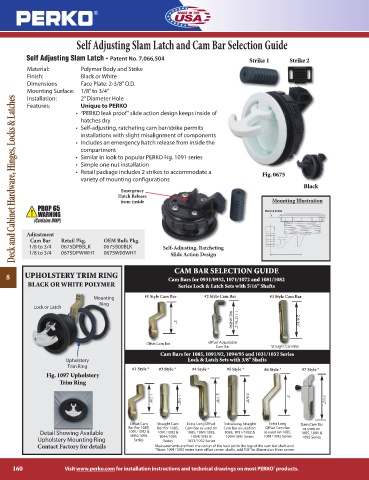

Self Adjusting Slam Latch and Cam Bar Selection Guide

Self Adjusting Slam Latch - Patent No. 7,066,504 Strike 1 Strike 2
Material: Polymer Body and Strike
Finish: Black or White
Dimensions Face Plate: 2-3/8” O.D.
Mounting Surface: 1/8” to 3/4”
Deck and Cabinet Hardware, Hinges, Locks & Latches
Installation: 2” Diameter Hole
Features: Unique to PERKO
• “PERKO leak proof” slide action design keeps inside of
hatches dry
• Self-adjusting, ratcheting cam bar/strike permits
installations with slight misalignment of components
• Includes an emergency hatch release from inside the
compartment
• Similar in look to popular PERKO Fig. 1091 series
• Simple one nut installation
• Retail package includes 2 strikes to accommodate a
Fig. 0675
variety of mounting configurations
Black
Emergency
Hatch Release
from inside Mounting Illustration

Adjustment
Cam Bar Retail Pkg. OEM Bulk Pkg.
1/8 to 3/4 0675DPBBLK 0675B00BLK Self-Adjusting, Ratcheting
1/8 to 3/4 0675DPWWHT 0675W00WHT Slide Action Design

CAM BAR SELECTION GUIDE
8 UPHOLSTERY TRIM RING Cam Bars for 0931/0932, 1071/1072 and 1081/1082
BLACK OR WHITE POLYMER Series Lock & Latch Sets with 5/16” Shafts
Mounting #1 Style Cam Bar #2 Style Cam Bar #3 Style Cam Bar
Ring
Lock or Latch 2” Adjustable 1-1/2” to 2” 2-9/16”

Offset Cam Bar Offset Adjustable
Cam Bar Straight Cam Bar
Cam Bars for 1085, 1091/92, 1094/95 and 1031/1032 Series
Upholstery Lock & Latch Sets with 3/8” Shafts
Trim Ring
#1 Style * #3 Style * #4 Style * #5 Style * #6 Style * #7 Style *
Fig. 1097 Upholstery
Trim Ring 1-7/8” 1-7/8” 2-7/8” 2-5/8” 3” 3-1/2”

Offset Cam Straight Cam Extra Long Offset Extra Long Straight Extra Long Slam Cam Bar
Bar For 1085, Bar For 1085, Cam Bar as used on Cam Bar as used on Offset Cam Bar as used on
Detail Showing Available 1091/1092 & 1091/1092 & 1085, 1091/1092, 1085, 1091/1092 & as used on 1085, 1085, 1091 &
1094/1095 1094/1095 1094/1095 & 1094/1095 Series 1091/1092 Series 1092 Series
Upholstery Mounting Ring Series Series 1031/1032 Series
Contact Factory for details Measurements are from the center of the lock set to the top of the cam bar shaft end.
*Note: 1091/1092 series have offset center shafts, add 5/8” for Dimension from center.
