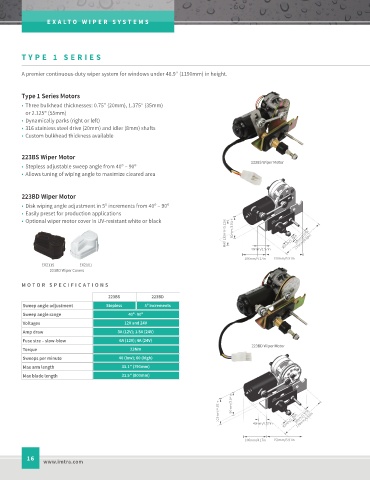

EX AL T O WIPER S Y S TEMS

T YPE 1 SERIES

A premier continuous-duty wiper system for windows under 46.9" (1190mm) in height.

Type 1 Series Motors
• Three bulkhead thicknesses: 0.75" (20mm), 1.375" (35mm)
or 2.125" (55mm)
• Dynamically parks (right or left)
• 316 stainless steel drive (20mm) and idler (8mm) shafts
• Custom bulkhead thickness available

223BS Wiper Motor
223BS Wiper Motor
o
• Stepless adjustable sweep angle from 40 – 90 o
• Allows tuning of wiping angle to maximize cleared area

223BD Wiper Motor
o
o
• Disk wiping angle adjustment in 5 increments from 40 – 90 o
• Easily preset for production applications
• Optional wiper motor cover in UV-resistant white or black
MAX 130mm/5.12in 90mm/3.54in 50mm/1.97in

40mm/1.57in 30mm/1.18in 170mm/6.69in
106mm/4.17in 150mm/5.91in
EX2115 EX2101
223BD Wiper Covers

MO T OR SPECIFICA TIONS

Models 223BS 223BD
Sweep angle adjustment Stepless 5 increments
o
o
Sweep angle range 40 - 90 o
Voltages 12V and 24V
Amp draw 3A (12V); 1.5A (24V)
Fuse size – slow-blow 6A (12V); 4A (24V)
223BD Wiper Motor
Torque 23Nm
Sweeps per minute 40 (low); 60 (high)
Max arm length 31.1" (790mm)
Max blade length 31.5" (800mm)

103mm/4.06in 90mm/3.54in 50mm/1.97in

40mm/1.57in 30mm/1.18in 170mm/6.69in

106mm/4.17in 150mm/5.91in
