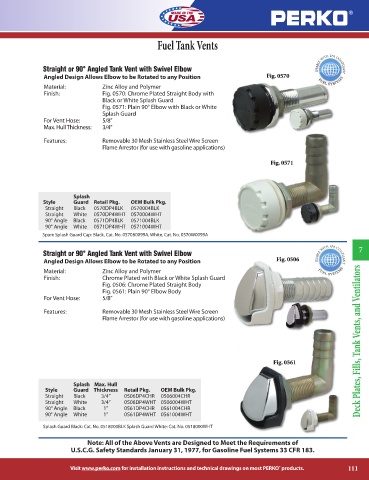

Page 111 - Perko

Fuel Tank Vents

Straight or 90° Angled Tank Vent with Swivel Elbow USABLE WITH EPA COMPLIANT
Angled Design Allows Elbow to be Rotated to any Position Fig. 0570 FUEL SYSTEMS
Material: Zinc Alloy and Polymer
Finish: Fig. 0570: Chrome Plated Straight Body with
Black or White Splash Guard
Fig. 0571: Plain 90° Elbow with Black or White
Splash Guard
For Vent Hose: 5/8”
Max. Hull Thickness: 3/4”
Features: Removable 30 Mesh Stainless Steel Wire Screen
Flame Arrestor (for use with gasoline applications)

Fig. 0571

Splash
Style Guard Retail Pkg. OEM Bulk Pkg.
Straight Black 0570DP4BLK 0570004BLK
Straight White 0570DP4WHT 0570004WHT
90° Angle Black 0571DP4BLK 0571004BLK
90° Angle White 0571DP4WHT 0571004WHT
Spare Splash Guard Cap: Black, Cat. No. 0570B0099A, White, Cat. No. 0570W0099A
7
Straight or 90° Angled Tank Vent with Swivel Elbow
Angled Design Allows Elbow to be Rotated to any Position Fig. 0506 USABLE WITH EPA COMPLIANT
FUEL SYSTEMS
Material: Zinc Alloy and Polymer
Finish: Chrome Plated with Black or White Splash Guard
Fig. 0506: Chrome Plated Straight Body
Fig. 0561: Plain 90° Elbow Body
For Vent Hose: 5/8”

Features: Removable 30 Mesh Stainless Steel Wire Screen
Flame Arrestor (for use with gasoline applications)

Fig. 0561 Deck Plates, Fills, Tank Vents, and Ventilators

Splash Max. Hull
Style Guard Thickness Retail Pkg. OEM Bulk Pkg.
Straight Black 3/4” 0506DP4CHR 0506004CHR
Straight White 3/4” 0506DP4WHT 0506004WHT
90° Angle Black 1” 0561DP4CHR 0561004CHR
90° Angle White 1” 0561DP4WHT 0561004WHT

Splash Guard Black: Cat. No. 0518000BLK Splash Guard White: Cat. No. 0518000WHT

Note: All of the Above Vents are Designed to Meet the Requirements of
U.S.C.G. Safety Standards January 31, 1977, for Gasoline Fuel Systems 33 CFR 183.

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 111
®
