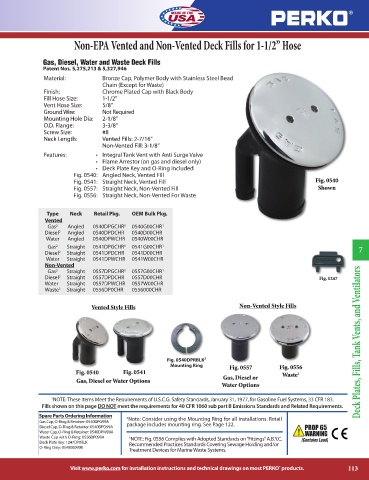

Page 113 - Perko

Non-EPA Vented and Non-Vented Deck Fills for 1-1/2” Hose

Gas, Diesel, Water and Waste Deck Fills
Patent Nos. 5,275,213 & 5,327,946
Material: Bronze Cap, Polymer Body with Stainless Steel Bead
Chain (Except for Waste)
Finish: Chrome Plated Cap with Black Body
Fill Hose Size: 1-1/2”
Vent Hose Size: 5/8”
Ground Wire: Not Required
Mounting Hole Dia: 2-1/8”
O.D. Flange: 3-3/8”
Screw Size: #8
Neck Length: Vented Fills: 2-7/16”
Non-Vented Fill: 3-1/8”
Features: • Integral Tank Vent with Anti Surge Valve
• Flame Arrestor (on gas and diesel only)
• Deck Plate Key and O-Ring Included
Fig. 0540: Angled Neck, Vented Fill
Fig. 0541: Straight Neck, Vented Fill Fig. 0540
Fig. 0557: Straight Neck, Non-Vented Fill Shown
Fig. 0556: Straight Neck, Non-Vented For Waste

Type Neck Retail Pkg. OEM Bulk Pkg.
Vented
Gas Angled 0540DPGCHR 1 0540G00CHR 1
2
2
Diesel Angled 0540DPDCHR 0540D00CHR
Water Angled 0540DPWCHR 0540W00CHR
2
Gas Straight 0541DPGCHR 1 0541G00CHR 1 7
2
Diesel Straight 0541DPDCHR 0541D00CHR
Water Straight 0541DPWCHR 0541W00CHR
Non-Vented
2
Gas Straight 0557DPGCHR 1 0557G00CHR 1
Diesel Straight 0557DPDCHR 0557D00CHR Fig. 1247
2
Water Straight 0557DPWCHR 0557W00CHR
3
Waste Straight 0556DP0CHR 0556000CHR
Vented Style Fills Non-Vented Style Fills

Fig. 0540DPRBLK 2 Deck Plates, Fills, Tank Vents, and Ventilators
Mounting Ring Fig. 0557 Fig. 0556
Fig. 0540 Fig. 0541 Waste 3
Gas, Diesel or
Gas, Diesel or Water Options
Water Options

1 NOTE: These Items Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183.
Fills shown on this page DO NOT meet the requirements for 40 CFR 1060 sub part B Emissions Standards and Related Requirements.
Spare Parts Ordering Information
2 Note: Consider using the Mounting Ring for all installations. Retail
Gas Cap, O-Ring & Retainer: 0540DPG99A
Diesel Cap, O-Ring & Retainer: 0540DPD99A package includes mounting ring. See Page 122.
Water Cap, O-Ring & Retainer: 0540DPW99A
Waste Cap with O-Ring: 0556DP099A 3 NOTE: Fig. 0556 Complies with Adopted Standards on “Fittings” A.B.Y.C.
Deck Plate Key: 1247DP0BLK Recommended Practices Standards Covering Sewage Holding and/or
O-Ring Only: 054000099B
Treatment Devices for Marine Waste Systems.

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 113
