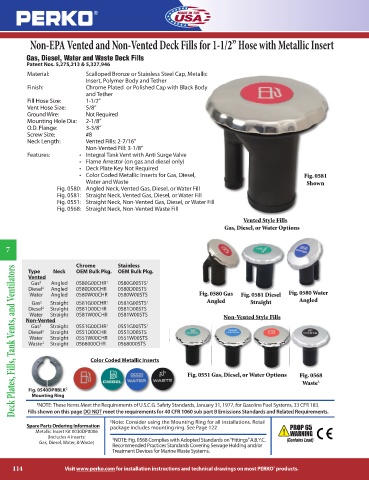

Non-EPA Vented and Non-Vented Deck Fills for 1-1/2” Hose with Metallic Insert

Gas, Diesel, Water and Waste Deck Fills
Patent Nos. 5,275,213 & 5,327,946
Material: Scalloped Bronze or Stainless Steel Cap, Metallic
Insert, Polymer Body and Tether
Finish: Chrome Plated or Polished Cap with Black Body
and Tether
Fill Hose Size: 1-1/2”
Vent Hose Size: 5/8”
Ground Wire: Not Required
Mounting Hole Dia: 2-1/8”
O.D. Flange: 3-3/8”
Screw Size: #8
Neck Length: Vented Fills: 2-7/16”
Non-Vented Fill: 3-1/8”
Features: • Integral Tank Vent with Anti Surge Valve
• Flame Arrestor (on gas and diesel only)
• Deck Plate Key Not Required
• Color Coded Metallic Inserts for Gas, Diesel, Fig. 0581
Water and Waste Shown
Fig. 0580: Angled Neck, Vented Gas, Diesel, or Water Fill
Fig. 0581: Straight Neck, Vented Gas, Diesel, or Water Fill
Fig. 0551: Straight Neck, Non-Vented Gas, Diesel, or Water Fill
Fig. 0568: Straight Neck, Non-Vented Waste Fill
Vented Style Fills
Gas, Diesel, or Water Options

7

Chrome Stainless
Deck Plates, Fills, Tank Vents, and Ventilators
Type Neck OEM Bulk Pkg. OEM Bulk Pkg.
Vented
2
Gas Angled 0580G00CHR 1 0580G00STS 1
Diesel Angled 0580D00CHR 0580D00STS
2
Water Angled 0580W00CHR 0580W00STS Fig. 0580 Gas Fig. 0581 Diesel Fig. 0580 Water
Angled Angled
2
Gas Straight 0581G00CHR 1 0581G00STS 1 Straight
Diesel Straight 0581D00CHR 0581D00STS
2
Water Straight 0581W00CHR 0581W00STS Non-Vented Style Fills
Non-Vented
Gas Straight 0551G00CHR 1 0551G00STS 1
2
Diesel Straight 0551D00CHR 0551D00STS
2
Water Straight 0551W00CHR 0551W00STS
Waste Straight 0568000CHR 0568000STS
3
Color Coded Metallic Inserts
Fig. 0551 Gas, Diesel, or Water Options Fig. 0568
Waste 3
Fig. 0540DPRBLK 2
Mounting Ring
1 NOTE: These Items Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183.
Fills shown on this page DO NOT meet the requirements for 40 CFR 1060 sub part B Emissions Standards and Related Requirements.
2 Note: Consider using the Mounting Ring for all installations. Retail
Spare Parts Ordering Information package includes mounting ring. See Page 122
Metallic Insert Kit 0030DP0006
(Includes 4 inserts:
3 NOTE: Fig. 0568 Complies with Adopted Standards on “Fittings” A.B.Y.C.
Gas, Diesel, Water, & Waste)
Recommended Practices Standards Covering Sewage Holding and/or
Treatment Devices for Marine Waste Systems.
114 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
