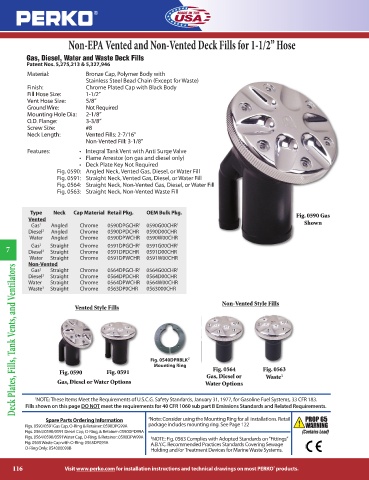

Page 116 - Perko

Non-EPA Vented and Non-Vented Deck Fills for 1-1/2” Hose

Gas, Diesel, Water and Waste Deck Fills
Patent Nos. 5,275,213 & 5,327,946
Material: Bronze Cap, Polymer Body with
Stainless Steel Bead Chain (Except for Waste)
Finish: Chrome Plated Cap with Black Body
Fill Hose Size: 1-1/2”
Vent Hose Size: 5/8”
Ground Wire: Not Required
Mounting Hole Dia: 2-1/8”
O.D. Flange: 3-3/8”
Screw Size: #8
Neck Length: Vented Fills: 2-7/16”
Non-Vented Fill: 3-1/8”
Features: • Integral Tank Vent with Anti Surge Valve
• Flame Arrestor (on gas and diesel only)
• Deck Plate Key Not Required
Fig. 0590: Angled Neck, Vented Gas, Diesel, or Water Fill
Fig. 0591: Straight Neck, Vented Gas, Diesel, or Water Fill
Fig. 0564: Straight Neck, Non-Vented Gas, Diesel, or Water Fill
Fig. 0563: Straight Neck, Non-Vented Waste Fill

Type Neck Cap Material Retail Pkg. OEM Bulk Pkg. Fig. 0590 Gas
Vented
Gas Angled Chrome 0590DPGCHR 1 0590G00CHR 1 Shown
2
Diesel Angled Chrome 0590DPDCHR 0590D00CHR
2
Water Angled Chrome 0590DPWCHR 0590W00CHR
Gas Straight Chrome 0591DPGCHR 1 0591G00CHR 1
2
7 Diesel Straight Chrome 0591DPDCHR 0591D00CHR
2
Water Straight Chrome 0591DPWCHR 0591W00CHR
Non-Vented
Deck Plates, Fills, Tank Vents, and Ventilators
2
Gas Straight Chrome 0564DPGCHR 1 0564G00CHR 1
Diesel Straight Chrome 0564DPDCHR 0564D00CHR
2
Water Straight Chrome 0564DPWCHR 0564W00CHR
3
Waste Straight Chrome 0563DP0CHR 0563000CHR
Non-Vented Style Fills
Vented Style Fills

Fig. 0540DPRBLK 2
Mounting Ring
Fig. 0590 Fig. 0591 Fig. 0564 Fig. 0563
Gas, Diesel or Waste 3
Gas, Diesel or Water Options Water Options

1 NOTE: These Items Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183.
Fills shown on this page DO NOT meet the requirements for 40 CFR 1060 sub part B Emissions Standards and Related Requirements.

Spare Parts Ordering Information 2 Note: Consider using the Mounting Ring for all installations. Retail
Figs. 0590/0591Gas Cap, O-Ring & Retainer: 0590DPG99A package includes mounting ring. See Page 122
Figs. 0564/0590/0591 Diesel Cap, O-Ring, & Retainer: 0590DPD99A
Figs. 0564/0590/0591Water Cap, O-Ring, & Retainer: 0590DPW99A 3 NOTE: Fig. 0563 Complies with Adopted Standards on “Fittings”
Fig. 0563 Waste Cap with O-Ring: 0563DP099A A.B.Y.C. Recommended Practices Standards Covering Sewage
O-Ring Only: 054000099B
Holding and/or Treatment Devices for Marine Waste Systems.

116 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
