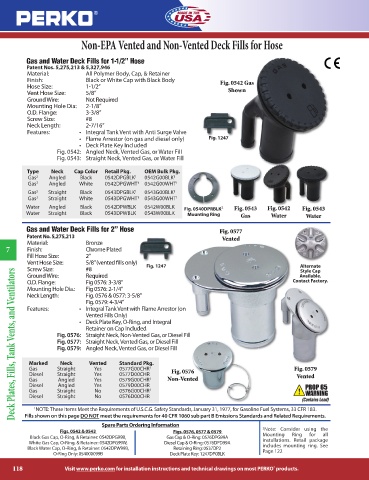

Page 118 - Perko

Non-EPA Vented and Non-Vented Deck Fills for Hose

Gas and Water Deck Fills for 1-1/2” Hose
Patent Nos. 5,275,213 & 5,327,946
Material: All Polymer Body, Cap, & Retainer
Finish: Black or White Cap with Black Body Fig. 0542 Gas
Hose Size: 1-1/2”
Vent Hose Size: 5/8” Shown
Ground Wire: Not Required
Mounting Hole Dia: 2-1/8”
O.D. Flange: 3-3/8”
Screw Size: #8
Neck Length: 2-7/16”
Features: • Integral Tank Vent with Anti Surge Valve
• Flame Arrestor (on gas and diesel only) Fig. 1247
• Deck Plate Key Included
Fig. 0542: Angled Neck, Vented Gas, or Water Fill
Fig. 0543: Straight Neck, Vented Gas, or Water Fill
Type Neck Cap Color Retail Pkg. OEM Bulk Pkg.
2
Gas Angled Black 0542DPGBLK 0542G00BLK 1
1
Gas Angled White 0542DPGWHT 0542G00WHT 1
1
2
1
Gas Straight Black 0543DPGBLK 0543G00BLK 1
2
2
Gas Straight White 0543DPGWHT 0543G00WHT 1
1
Water Angled Black 0542DPWBLK 0542W00BLK 2
Fig. 0540DPRBLK Fig. 0543 Fig. 0542 Fig. 0543
Water Straight Black 0543DPWBLK 0543W00BLK Mounting Ring Gas Water Water
Gas and Water Deck Fills for 2” Hose Fig. 0577
Patent No. 5,275,213 Vented
Material: Bronze
7 Finish: Chrome Plated
Fill Hose Size: 2”
Vent Hose Size: 5/8” (vented fills only) Fig. 1247
Screw Size: #8 Alternate
Deck Plates, Fills, Tank Vents, and Ventilators
Style Cap
Ground Wire: Required Available.
O.D. Flange: Fig 0576: 3-3/8” Contact Factory.
Mounting Hole Dia.: Fig 0576: 2-1/4”
Neck Length: Fig. 0576 & 0577: 3-5/8”
Fig. 0579: 4-3/4”
Features: • Integral Tank Vent with Flame Arrestor (on
Vented Fills Only)
• Deck Plate Key, O-Ring, and Integral
Retainer on Cap Included
Fig. 0576: Straight Neck, Non-Vented Gas, or Diesel Fill
Fig. 0577: Straight Neck, Vented Gas, or Diesel Fill
Fig. 0579: Angled Neck, Vented Gas, or Diesel Fill

Marked Neck Vented Standard Pkg.
Gas Straight Yes 0577G00CHR 1 Fig. 0579
Diesel Straight Yes 0577D00CHR Fig. 0576 Vented
Gas Angled Yes 0579G00CHR 1 Non-Vented
Diesel Angled Yes 0579D00CHR
Gas Straight No 0576G00CHR 1
Diesel Straight No 0576D00CHR

1 NOTE: These Items Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183.
Fills shown on this page DO NOT meet the requirements for 40 CFR 1060 sub part B Emissions Standards and Related Requirements.
Spare Parts Ordering Information
2 Note: Consider using the
Figs. 0542 & 0543 Figs. 0576, 0577 & 0579
Black Gas Cap, O-Ring, & Retainer: 0542DPG99B, Gas Cap & O-Ring: 0576DPG99A Mounting Ring for all
White Gas Cap, O-Ring, & Retainer: 0542DPG99W, Diesel Cap & O-Ring: 0576DPD99A installations. Retail package
Black Water Cap, O-Ring, & Retainer: 0542DPW99B, Retaining Ring: 0537DP2 includes mounting ring. See
O-Ring Only: 054000099B Deck Plate Key: 1247DP0BLK Page 122

118 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
