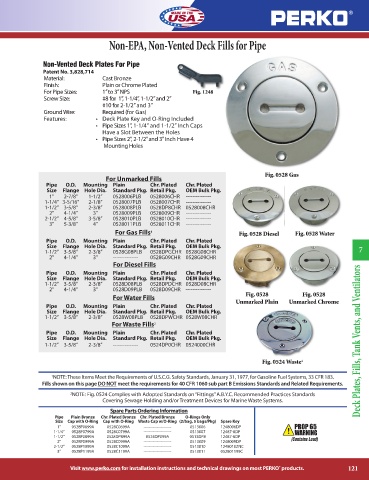

Page 121 - Perko

Non-EPA, Non-Vented Deck Fills for Pipe

Non-Vented Deck Plates For Pipe
Patent No. 3,828,714
Material: Cast Bronze
Finish: Plain or Chrome Plated
For Pipe Sizes: 1” to 3” NPS Fig. 1248
Screw Size: #8 for 1”, 1-1/4”, 1-1/2” and 2”
#10 for 2-1/2” and 3”
Ground Wire: Required (for Gas)
Features: • Deck Plate Key and O-Ring Included
• Pipe Sizes 1”, 1-1/4” and 1-1/2” Inch Caps
Have a Slot Between the Holes
• Pipe Sizes 2”, 2-1/2” and 3” Inch Have 4
Mounting Holes

Fig. 0528 Gas
For Unmarked Fills
Pipe O.D. Mounting Plain Chr. Plated Chr. Plated
Size Flange Hole Dia. Standard Pkg. Retail Pkg. OEM Bulk Pkg.
1” 2-7/8” 1-1/2” 0528006PLB 0528006CHR ---------------
1-1/4” 3-5/16” 2-1/8” 0528007PLB 0528007CHR ---------------
1-1/2” 3-5/8” 2-3/8” 0528008PLB 0528DP8CHR 0528008CHR
2” 4-1/4” 3” 0528009PLB 0528009CHR ---------------
2-1/2” 4-5/8” 3-5/8” 0528010PLB 0528010CHR ---------------
3” 5-3/8” 4” 0528011PLB 0528011CHR ---------------
For Gas Fills 1 Fig. 0528 Diesel Fig. 0528 Water
Pipe O.D. Mounting Plain Chr. Plated Chr. Plated
Size Flange Hole Dia. Standard Pkg. Retail Pkg. OEM Bulk Pkg. 7
1-1/2” 3-5/8” 2-3/8” 0528G08PLB 0528DPGCHR 0528G08CHR
2” 4-1/4” 3” --------------- 0528G09CHR 0528G09CHR
For Diesel Fills
Pipe O.D. Mounting Plain Chr. Plated Chr. Plated
Size Flange Hole Dia. Standard Pkg. Retail Pkg. OEM Bulk Pkg.
1-1/2” 3-5/8” 2-3/8” 0528D08PLB 0528DPDCHR 0528D08CHR
2” 4-1/4” 3” 0528D09PLB 0528D09CHR ---------------
Fig. 0528 Fig. 0528
For Water Fills
Unmarked Plain Unmarked Chrome
Pipe O.D. Mounting Plain Chr. Plated Chr. Plated
Size Flange Hole Dia. Standard Pkg. Retail Pkg. OEM Bulk Pkg.
1-1/2” 3-5/8” 2-3/8” 0528W08PLB 0528DPWCHR 0528W08CHR
For Waste Fills 2

Pipe O.D. Mounting Plain Chr. Plated Chr. Plated
Size Flange Hole Dia. Standard Pkg. Retail Pkg. OEM Bulk Pkg. Deck Plates, Fills, Tank Vents, and Ventilators
1-1/2” 3-5/8” 2-3/8” --------------- 0524DP0CHR 0524000CHR

Fig. 0524 Waste 2

1 NOTE: These Items Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183.
Fills shown on this page DO NOT meet the requirements for 40 CFR 1060 sub part B Emissions Standards and Related Requirements.
2 NOTE: Fig. 0524 Complies with Adopted Standards on “Fittings” A.B.Y.C. Recommended Practices Standards
Covering Sewage Holding and/or Treatment Devices for Marine Waste Systems.
Spare Parts Ordering Information
Pipe Plain Bronze Chr. Plated Bronze Chr. Plated Bronze O-Rings Only
Size Cap with O-Ring Cap with O-Ring Waste Cap w/O-Ring (2/bag, 5 bags/Pkg) Spare Key
1” 0528P0699A 0528C0699A --------------------- 0513006 1248006DP
1-1/4” 0528P0799A 0528C0799A --------------------- 0513007 12487-8DP
1-1/2” 0528P0899A 0528DP899A 0524DP099A 0513DP8 12487-8DP
2” 0528P0999A 0528C0999A --------------------- 0513009 1248009DP
2-1/2” 0528P1099A 0528C1099A --------------------- 0513010 1248010ZNC
3” 0528P1199A 0528C1199A --------------------- 0513011 052801199C

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 121
