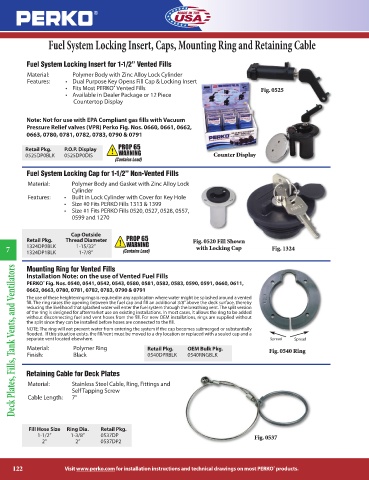

Fuel System Locking Insert, Caps, Mounting Ring and Retaining Cable

Fuel System Locking Insert for 1-1/2” Vented Fills

Material: Polymer Body with Zinc Alloy Lock Cylinder
Features: • Dual Purpose Key Opens Fill Cap & Locking Insert
®
• Fits Most PERKO Vented Fills Fig. 0525
• Available in Dealer Package or 12 Piece
Countertop Display

Note: Not for use with EPA Compliant gas fills with Vacuum
Pressure Relief valves (VPR) Perko Fig. Nos. 0660, 0661, 0662,
0663, 0780, 0781, 0782, 0783, 0790 & 0791

Retail Pkg. P.O.P. Display
0525DP0BLK 0525DP0DIS Counter Display

Fuel System Locking Cap for 1-1/2” Non-Vented Fills
Material: Polymer Body and Gasket with Zinc Alloy Lock
Cylinder
Features: • Built in Lock Cylinder with Cover for Key Hole
• Size #0 Fits PERKO Fills 1313 & 1399
• Size #1 Fits PERKO Fills 0520, 0527, 0528, 0557,
0599 and 1270

Cap Outside
Retail Pkg. Thread Diameter Fig. 0520 Fill Shown
1324DP0BLK 1-15/32”
7 with Locking Cap Fig. 1324
1324DP1BLK 1-7/8”
Deck Plates, Fills, Tank Vents, and Ventilators
Mounting Ring for Vented Fills
Installation Note: on the use of Vented Fuel Fills
®
PERKO Fig. Nos. 0540, 0541, 0542, 0543, 0580, 0581, 0582, 0583, 0590, 0591, 0660, 0611,
0662, 0663, 0780, 0781, 0782, 0783, 0790 & 0791
The use of these heightening rings is required in any application where water might be splashed around a vented
fill. The ring raises the opening between the fuel cap and fill an additional 3/8” above the deck surface, thereby
reducing the likelihood that splashed water will enter the fuel system through the breathing vent. The split version
of the ring is designed for aftermarket use on existing installations. In most cases, it allows the ring to be added
without disconnecting fuel and vent hoses from the fill. For new OEM installations, rings are supplied without
the split since they can be installed before hoses are connected to the fill.
NOTE: The ring will not prevent water from entering the system if the cap becomes submerged or substantially
flooded. If this situation exists, the fill/vent must be moved to a dry location or replaced with a sealed cap and a
separate vent located elsewhere. Spread Spread
Material: Polymer Ring Retail Pkg. OEM Bulk Pkg. Fig. 0540 Ring
Finish: Black 0540DPRBLK 0540RNGBLK

Retaining Cable for Deck Plates
Material: Stainless Steel Cable, Ring, Fittings and
Self Tapping Screw
Cable Length: 7”

Fill Hose Size Ring Dia. Retail Pkg.
1-1/2” 1-3/8” 0537DP Fig. 0537
2” 2” 0537DP2
