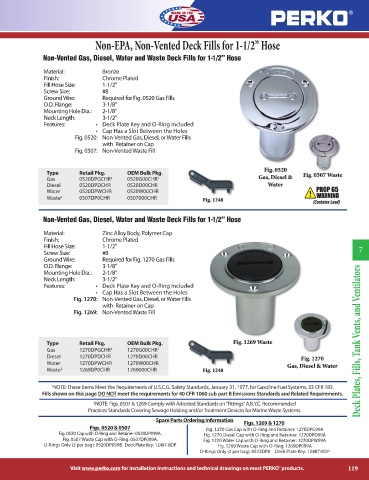

Page 119 - Perko

Non-EPA, Non-Vented Deck Fills for 1-1/2” Hose

Non-Vented Gas, Diesel, Water and Waste Deck Fills for 1-1/2” Hose

Material: Bronze
Finish: Chrome Plated
Fill Hose Size: 1-1/2”
Screw Size: #8
Ground Wire: Required for Fig. 0520 Gas Fills
O.D. Flange: 3-1/8”
Mounting Hole Dia.: 2-1/8”
Neck Length: 3-1/2”
Features: • Deck Plate Key and O-Ring Included
• Cap Has a Slot Between the Holes
Fig. 0520: Non-Vented Gas, Diesel, or Water Fills
with Retainer on Cap
Fig. 0507: Non-Vented Waste Fill

Fig. 0520
Type Retail Pkg. OEM Bulk Pkg. Fig. 0507 Waste
Gas 0520DPGCHR 1 0520G00CHR 1 Gas, Diesel &
Diesel 0520DPDCHR 0520D00CHR Water
Water 0520DPWCHR 0520W00CHR
Waste 2 0507DP0CHR 0507000CHR Fig. 1248

Non-Vented Gas, Diesel, Water and Waste Deck Fills for 1-1/2” Hose

Material: Zinc Alloy Body, Polymer Cap
Finish: Chrome Plated
Fill Hose Size: 1-1/2” 7
Screw Size: #8
Ground Wire: Required for Fig. 1270 Gas Fills
O.D. Flange: 3-1/8”
Mounting Hole Dia.: 2-1/8”
Neck Length: 3-1/2”
Features: • Deck Plate Key and O-Ring Included
• Cap Has a Slot Between the Holes
Fig. 1270: Non-Vented Gas, Diesel, or Water Fills
with Retainer on Cap
Fig. 1269: Non-Vented Waste Fill

Type Retail Pkg. OEM Bulk Pkg. Fig. 1269 Waste Deck Plates, Fills, Tank Vents, and Ventilators
Gas 1270DPGCHR 1 1270G00CHR 1
Diesel 1270DPDCHR 1270D00CHR
Fig. 1270
Water 1270DPWCHR 1270W00CHR Gas, Diesel & Water
Waste 2 1269DP0CHR 1269000CHR Fig. 1248

1 NOTE: These Items Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183.
Fills shown on this page DO NOT meet the requirements for 40 CFR 1060 sub part B Emissions Standards and Related Requirements.
2 NOTE: Figs. 0507 & 1269 Comply with Adopted Standards on “Fittings” A.B.Y.C. Recommended
Practices Standards Covering Sewage Holding and/or Treatment Devices for Marine Waste Systems.
Spare Parts Ordering Information
Figs. 1269 & 1270
Figs. 0520 & 0507 Fig. 1270 Gas Cap with O-Ring and Retainer: 1270DPG99A
Fig. 0520 Cap with O-Ring and Retainer: 0520DP099A. Fig. 1270 Diesel Cap with O-Ring and Retainer: 1270DPD99A
Fig. 0507 Waste Cap with O-Ring: 0507DP099A. Fig. 1270 Water Cap with O-Ring and Retainer: 1270DPW99A
O-Rings Only (2 per bag): 0520DP099B Deck Plate Key: 12487-8DP. Fig. 1269 Waste Cap with O-Ring: 1269DP099A
O-Rings Only (2 per bag): 0513DP8 Deck Plate Key: 12487-8DP

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 119
®
