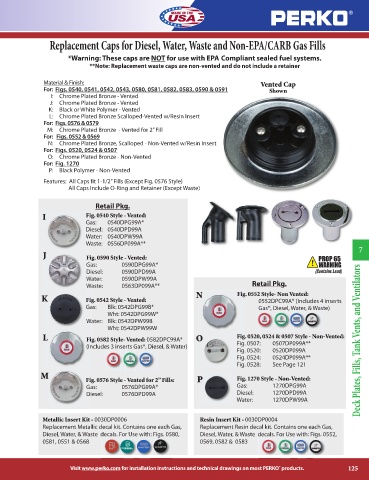

Page 125 - Perko

Replacement Caps for Diesel, Water, Waste and Non-EPA/CARB Gas Fills

*Warning: These caps are NOT for use with EPA Compliant sealed fuel systems.
**Note: Replacement waste caps are non-vented and do not include a retainer

Material & Finish: Vented Cap
For: Figs. 0540, 0541, 0542, 0543, 0580, 0581, 0582, 0583, 0590 & 0591 Shown
I: Chrome Plated Bronze - Vented
J: Chrome Plated Bronze - Vented
K: Black or White Polymer - Vented
L: Chrome Plated Bronze Scalloped-Vented w/Resin Insert
For: Figs. 0576 & 0579
M: Chrome Plated Bronze - Vented for 2” Fill
For: Figs. 0552 & 0569
N: Chrome Plated Bronze, Scalloped - Non-Vented w/Resin Insert
For: Figs. 0520, 0524 & 0507
O: Chrome Plated Bronze - Non-Vented
For: Fig. 1270
P: Black Polymer - Non-Vented
Features: All Caps fit 1-1/2” Fills (Except Fig. 0576 Style)
All Caps Include O-Ring and Retainer (Except Waste)

Retail Pkg.

I Fig. 0540 Style - Vented:
Gas: 0540DPG99A*
Diesel: 0540DPD99A
Water: 0540DPW99A
Waste: 0556DP099A**
7
J Fig. 0590 Style - Vented:

Gas: 0590DPG99A*
Diesel: 0590DPD99A
Water: 0590DPW99A
Waste: 0563DP099A** Retail Pkg.
N Fig. 0552 Style- Non Vented:
K Fig. 0542 Style - Vented: 0552DPC99A* (Includes 4 inserts
Gas: Blk: 0542DPG99B* Gas*, Diesel, Water, & Waste)
Wht: 0542DPG99W*
Water: Blk: 0542DPW99B
Wht: 0542DPW99W
L Fig. 0582 Style- Vented: 0582DPC99A* O Fig. 0520, 0524 & 0507 Style - Non-Vented: Deck Plates, Fills, Tank Vents, and Ventilators
(Includes 3 inserts Gas*, Diesel, & Water) Fig. 0507: 0507DP099A**
Fig. 0520: 0520DP099A
Fig. 0524: 0524DP099A**
Fig. 0528: See Page 121
M
Fig. 0576 Style - Vented for 2” Fills: P Fig. 1270 Style - Non-Vented:
Gas: 0576DPG99A* Gas: 1270DPG99A
Diesel: 0576DPD99A Diesel: 1270DPD99A
Water: 1270DPW99A

Metallic Insert Kit - 0030DP0006 Resin Insert Kit - 0030DP0004
Replacement Metallic decal kit. Contains one each Gas, Replacement Resin decal kit. Contains one each Gas,
Diesel, Water, & Waste decals. For Use with: Figs. 0580, Diesel, Water, & Waste decals. For Use with: Figs. 0552,
0581, 0551 & 0568 0569, 0582 & 0583

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 125
