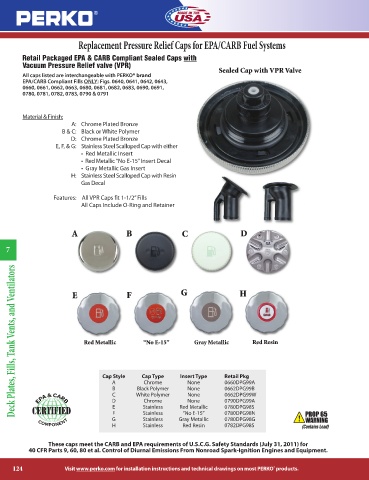

Replacement Pressure Relief Caps for EPA/CARB Fuel Systems

Retail Packaged EPA & CARB Compliant Sealed Caps with
Vacuum Pressure Relief valve (VPR)
Sealed Cap with VPR Valve
All caps listed are interchangeable with PERKO® brand
EPA/CARB Compliant Fills ONLY: Figs. 0640, 0641, 0642, 0643,
0660, 0661, 0662, 0663, 0680, 0681, 0682, 0683, 0690, 0691,
0780, 0781, 0782, 0783, 0790 & 0791

Material & Finish:
A: Chrome Plated Bronze
B & C: Black or White Polymer
D: Chrome Plated Bronze
E, F, & G: Stainless Steel Scalloped Cap with either
• Red Metallic Insert
• Red Metallic “No E-15” Insert Decal
• Gray Metallic Gas Insert
H: Stainless Steel Scalloped Cap with Resin
Gas Decal

Features: All VPR Caps fit 1-1/2” Fills
All Caps Include O-Ring and Retainer

A B C D

7

Deck Plates, Fills, Tank Vents, and Ventilators

E F G H

Red Metallic “No E-15” Gray Metallic Red Resin

Cap Style Cap Type Insert Type Retail Pkg
A Chrome None 0660DPG99A
B Black Polymer None 0662DPG99B
C White Polymer None 0662DPG99W
D Chrome None 0790DPG99A
EPA & CARB
E Stainless Red Metallic 0780DPG98S
CERTIFIEDERTIFIED F Stainless “No E-15” 0780DPG98N
C
COMPONENT G Stainless Gray Metallic 0780DPG98G
H Stainless Red Resin 0782DPG98S

These caps meet the CARB and EPA requirements of U.S.C.G. Safety Standards (July 31, 2011) for
40 CFR Parts 9, 60, 80 et al. Control of Diurnal Emissions From Nonroad Spark-Ignition Engines and Equipment.

124 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
