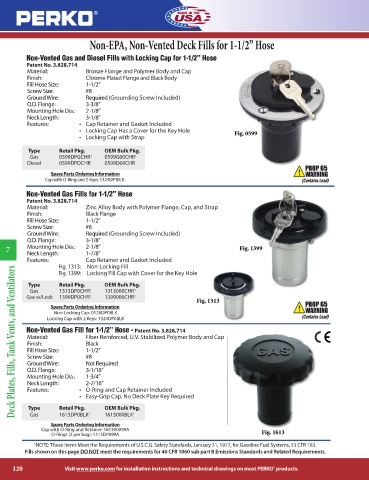

Page 120 - Perko

Non-EPA, Non-Vented Deck Fills for 1-1/2” Hose

Non-Vented Gas and Diesel Fills with Locking Cap for 1-1/2” Hose
Patent No. 3,828,714
Material: Bronze Flange and Polymer Body and Cap
Finish: Chrome Plated Flange and Black Body
Fill Hose Size: 1-1/2”
Screw Size: #8
Ground Wire: Required (Grounding Screw Included)
O.D. Flange: 3-3/8”
Mounting Hole Dia.: 2-1/8”
Neck Length: 3-1/8”
Features: • Cap Retainer and Gasket Included
• Locking Cap Has a Cover for the Key Hole Fig. 0599
• Locking Cap with Strap
Type Retail Pkg. OEM Bulk Pkg.
Gas 0599DPGCHR 0599G00CHR 1
1
Diesel 0599DPDCHR 0599D00CHR
Spare Parts Ordering Information
Cap with O-Ring and 2 Keys: 1324DP1BLK.

Non-Vented Gas Fills for 1-1/2” Hose
Patent No. 3,828,714
Material: Zinc Alloy Body with Polymer Flange, Cap, and Strap
Finish: Black Flange
Fill Hose Size: 1-1/2”
Screw Size: #6
Ground Wire: Required (Grounding Screw Included)
O.D. Flange: 3-1/8”
7 Mounting Hole Dia.: 2-1/8” Fig. 1399
Neck Length: 1-7/8”
Features: Cap Retainer and Gasket Included
Fig. 1313: Non-Locking Fill
Deck Plates, Fills, Tank Vents, and Ventilators
Fig. 1399: Locking Fill Cap with Cover for the Key Hole
Type Retail Pkg. OEM Bulk Pkg.
1
Gas 1313DP0CHR 1313000CHR 1
Gas w/Lock 1399DP0CHR 1399000CHR 1
1
Fig. 1313
Spare Parts Ordering Information
Non-Locking Cap: 0126DP0BLK
Locking Cap with 2 Keys: 1324DP0BLK
Non-Vented Gas Fill for 1-1/2” Hose - Patent No. 3,828,714
Material: Fiber Reinforced, U.V. Stabilized Polymer Body and Cap
Finish: Black
Fill Hose Size: 1-1/2”
Screw Size: #8
Ground Wire: Not Required
O.D. Flange: 3-1/16”
Mounting Hole Dia.: 1-3/4”
Neck Length: 2-7/16”
Features: • O-Ring and Cap Retainer Included
• Easy-Grip Cap, No Deck Plate Key Required

Type Retail Pkg. OEM Bulk Pkg.
1
Gas 1613DP0BLK 1613000BLK 1
Spare Parts Ordering Information
Cap with O-Ring and Retainer: 161300099A
O-Rings (2 per bag): 1313DP099A Fig. 1613
1 NOTE: These Items Meet the Requirements of U.S.C.G. Safety Standards, January 31, 1977, for Gasoline Fuel Systems, 33 CFR 183.
Fills shown on this page DO NOT meet the requirements for 40 CFR 1060 sub part B Emissions Standards and Related Requirements.

120 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
