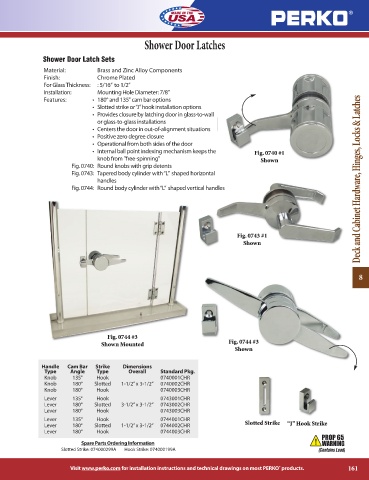

Page 161 - Perko

Shower Door Latches

Shower Door Latch Sets
Material: Brass and Zinc Alloy Components
Finish: Chrome Plated
For Glass Thickness: : 5/16” to 1/2”
Installation: Mounting Hole Diameter: 7/8”
Features: • 180° and 135° cam bar options
• Slotted strike or “J” hook installation options
• Provides closure by latching door in glass-to-wall
or glass-to-glass installations
• Centers the door in out-of-alignment situations
• Positive zero degree closure
• Operational from both sides of the door
• Internal ball point indexing mechanism keeps the Fig. 0740 #1
knob from "free-spinning” Shown
Fig. 0740: Round knobs with grip detents
Fig. 0743: Tapered body cylinder with “L” shaped horizontal
handles Deck and Cabinet Hardware, Hinges, Locks & Latches
Fig. 0744: Round body cylinder with “L” shaped vertical handles

Fig. 0743 #1
Shown

8

Fig. 0744 #3
Shown Mounted Fig. 0744 #3
Shown

Handle Cam Bar Strike Dimensions
Type Angle Type Overall Standard Pkg.
Knob 135° Hook 0740001CHR
Knob 180° Slotted 1-1/2” x 3-1/2” 0740002CHR
Knob 180° Hook 0740003CHR
Lever 135° Hook 0743001CHR
Lever 180° Slotted 3-1/2” x 3-1/2” 0743002CHR
Lever 180° Hook 0743003CHR
Lever 135° Hook 0744001CHR
Lever 180° Slotted 1-1/2” x 3-1/2” 0744002CHR Slotted Strike “J” Hook Strike
Lever 180° Hook 0744003CHR
Spare Parts Ordering Information
Slotted Strike: 074000299A Hook Strike: 074000199A

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 161
