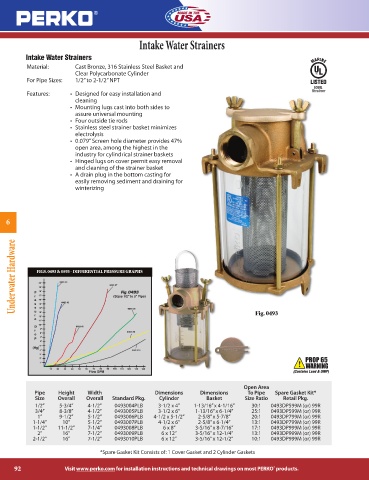

Page 92 - Perko

Intake Water Strainers

Intake Water Strainers
Material: Cast Bronze, 316 Stainless Steel Basket and
Clear Polycarbonate Cylinder
For Pipe Sizes: 1/2” to 2-1/2” NPT

Features: • Designed for easy installation and
cleaning
• Mounting lugs cast into both sides to
assure universal mounting
• Four outside tie rods
• Stainless steel strainer basket minimizes
electrolysis
• 0.079” Screen hole diameter provides 47%
open area, among the highest in the
industry for cylindrical strainer baskets
• Hinged lugs on cover permit easy removal
and cleaning of the strainer basket
• A drain plug in the bottom casting for
easily removing sediment and draining for
winterizing

6

Underwater Hardware FIGS. 0493 & 0593 - DIFFERENTIAL PRESSURE GRAPHS Fig. 0493

(Sizes 1/2” to 3” Pipe)

Open Area
Pipe Height Width Dimensions Dimensions To Pipe Spare Gasket Kit*
Size Overall Overall Standard Pkg. Cylinder Basket Size Ratio Retail Pkg.
1/2” 5-3/4” 4-1/2” 0493004PLB 3-1/2 x 4” 1-13/16” x 4-1/16” 30:1 0493DP599M (or) 99R
3/4” 8-3/8” 4-1/2” 0493005PLB 3-1/2 x 6” 1-13/16” x 6-1/4” 25:1 0493DP599M (or) 99R
1” 9-1/2” 5-1/2” 0493006PLB 4-1/2 x 5-1/2” 2-5/8” x 5-7/8” 20:1 0493DP799M (or) 99R
1-1/4” 10” 5-1/2” 0493007PLB 4-1/2 x 6” 2-5/8” x 6-1/4” 13:1 0493DP799M (or) 99R
1-1/2” 11-1/2” 7-1/4” 0493008PLB 6 x 8” 3-5/16” x 8-7/16” 17:1 0493DP999M (or) 99R
2” 16” 7-1/2” 0493009PLB 6 x 12” 3-5/16” x 12-1/4” 13:1 0493DP999M (or) 99R
2-1/2” 16” 7-1/2” 0493010PLB 6 x 12” 3-5/16” x 12-1/2” 10:1 0493DP999M (or) 99R

*Spare Gasket Kit Consists of: 1 Cover Gasket and 2 Cylinder Gaskets
